| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Golok | PAT206 | Schlichting, Harmsdorf, West Germany | 5.11.1981 | 12.3.1982 | in service (2019) | ||
| Panan | PAT207 | Schlichting, Harmsdorf, West Germany | 5.11.1981 | 12.3.1982 | in service (2019) | ||
| Pedang | PAT208 | Schlichting, Harmsdorf, West Germany | 5.11.1981 | 12.5.1982 | in service (2019) | ||
| Kapak | PAT209 | Schlichting, Harmsdorf, West Germany | 5.11.1981 | 12.5.1982 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
200 |
|
Length, m |
37.5 |
|
Breadth, m |
7.00 |
|
Draught, m |
2.00 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 16V652 TB61 diesels |
|
Power, h. p. |
4200 |
|
Max speed, kts |
28 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 1500(18) |
|
Armament |
1 x 1 - 20/85 S.20 |
|
Electronic equipment |
radar |
| Complement | 18 |
Project history: Patrol craft also equipped for SAR duties. Have water monitor, rescue launch and 8-man sick bay.
Modernizations: None.
Naval service: No significant events.

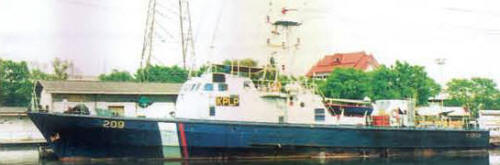

Kapak 1998
