| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Bima Samudera I | Boeing, Seattle, USA | 22.10.1981 | 14.12.1981 | stricken 1.2001 | |||
| Bima Samudera II | Boeing, Seattle, USA / PT PAL, Surabaya | 10.12.1983 | 1984 | 1.10.1986 | stricken early 2000s | ||
| Bima Samudera III | Boeing, Seattle, USA / PT PAL, Surabaya | 10.12.1983 | 6.1.1984 | 1.10.1986 | stricken early 2000s | ||
| Bima Samudera... | Boeing, Seattle, USA / PT PAL, Surabaya | 6.3.1986 | --- | never delivered | |||
| Bima Samudera... | Boeing, Seattle, USA / PT PAL, Surabaya | 23.7.1986 | --- | never delivered |
|
Displacement standard, t |
|
|
Displacement full, t |
115 |
|
Length, m |
foils down 27.4 |
|
Breadth, m |
9.10 |
|
Draught, m |
1.90 hull 5.20 foils down 2.00 max foiling |
|
No of shafts |
2 waterjets / 2 |
|
Machinery |
2 Allison 501-K20A gas turbines / 2 General Motors 8V92 TI diesels |
|
Power, h. p. |
7560 / 900 |
|
Max speed, kts |
46 / 15 |
|
Fuel, t |
gas turbine oil + diesel oil 33 |
|
Endurance, nm(kts) |
900(40) or 1500(15) |
|
Armament |
Bima Samudera I: 1 x 1 - 40/70 Bofors 350 AFD Bima Samudera II, III: 1 x 1 - 20/85 S.20, 2 x 1 - 12.7/90 |
|
Electronic equipment |
Decca radar |
|
Military load |
Bima Samudera I: 260 passengers Bima Samudera II, III: 100 troops |
|
Complement |
6 |
Project history: Bima Samudera I was purchased by the Indonesian Agency for the development and Application of Technology for evaluating such a craft in naval patrol, logistic support and civil roles. First craft arrived to Indonesia in February 1982. Aluminium construction.
The hydrofoil contract with Boeing Marine Services called for two each of two versions of the basic Jetfoil design, with completion taking place in Indonesia. Initially 47 craft were planned to order. First four series craft were built by Boeing and delivered to Indonesia for fitting out. Only two first boat in troop transport configuration were commissioned by Indonesian Navy. Two others, intended as gunboats, were completed by Boeing in 1986 but were never delivered to Indonesia.
Modernizations: None.
Naval service: No significant events.

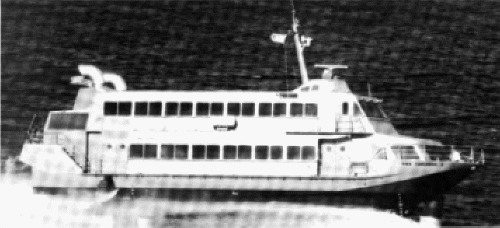

Bima Samudera I 1981

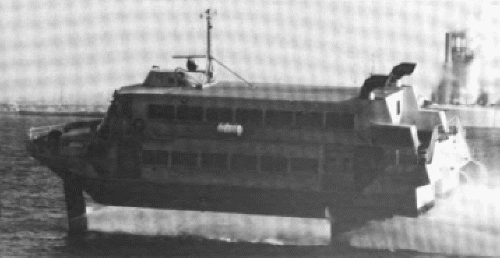

Bima Samudera II or III 1985
© Ivan Gogin, 2017
