Names |
BC4001-4006 BC5001-5006 BC6001-6006 BC7001-7006 BC8001-8006 BC9001-9006 |
|
Builders |
Lürssen, Vegesack, West Germany: BC4001-4006, 5001-5006 Fulton, Ruisbroeek, Belgium: BC6001-6006 Sheepswerven Van Langebrugge, Belgium: BC7001-7006 PT PAL, Surabaya: BC8001-8006, 9001-9006 |
|
Commissioned |
1981: BC4001-4006, 5001-5006 1981-82: BC6001-6006 1982: BC7001-7006 1985-86: BC8001-8006 1986: BC9001-9006 |
|
Losses |
BC7003 (foundered 19.10.2015), BC9002 (foundered 19.10.2015) |
|
Transfers |
none |
|
Discarding |
in service (2019): BC4001-4006, 5001-5006, 6001-6006, 7001, 7002, 7004-7006, 8001-8006, 9001, 9003-9006 |
|
Displacement standard, t |
61 |
|
Displacement full, t |
69 |
|
Length, m |
26.0 wl 28.0 oa |
|
Breadth, m |
5.40 |
|
Draught, m |
1.60 |
|
No of shafts |
2 |
|
Machinery |
BC4001-4003, 6001-6005: 2 Deutz SBA 16M 816LCK-R diesels BC4004-4006, 5001-5006, 6006, 7001-7006, 8001-8006, 9001-9006: 2 MTU diesels |
|
Power, h. p. |
BC4001-4003, 6001-6005: 2720 BC4004-4006, 5001-5006, 6006, 7001-7006, 8001-8006, 9001-9006: 2620 |
|
Max speed, kts |
30 |
|
Fuel, t |
diesel oil 10 |
| Endurance, nm(kts) | 1050(17) |
|
Armament |
1 x 1 - 12.7/90 |
|
Electronic equipment |
radar |
| Complement | 19 |
Project history: Patrol boats.
Modernizations: None.
Naval service: No significant events.

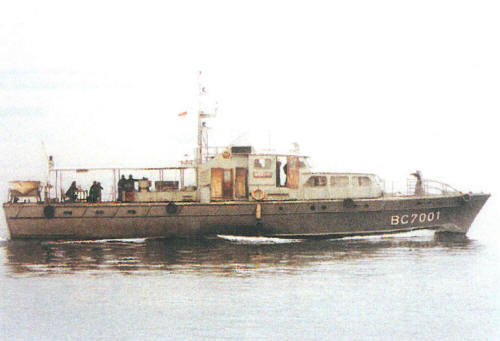

BC7001 2000
