| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| BC30001 | PT PAL, Surabaya | 19.12.2007 | 21.12.2009 | in service (2019) | |||
| BC30002 | PT PAL, Surabaya | 19.12.2007 | 12.2.2010 | in service (2019) | |||
| BC30003 | PT PAL, Surabaya | 19.12.2007 | 1.4.2010 | in service (2019) | |||
| BC30004 | PT Daya Radar Utama, Jakarta | 2016 | in service (2019) | ||||
| BC30005 | PT Daya Radar Utama, Jakarta | 2016 | in service (2019) | ||||
| BC30006 | PT Daya Radar Utama, Jakarta | 2017 | in service (2019) | ||||
| BC30007 | PT Daya Radar Utama, Jakarta | 2017 | in service (2019) |
|
Displacement standard, t |
165 |
|
Displacement full, t |
240 |
|
Length, m |
36.7 pp 42.0 oa |
|
Breadth, m |
7.30 |
|
Draught, m |
2.40 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 12V4000 M93L + 2 MTU 16V4000 M73L diesels |
|
Power, h. p. |
7400 |
|
Max speed, kts |
30 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 2000 |
|
Armament |
1 x 1 - 12.7/90 |
|
Electronic equipment |
Furuno FAR2127, Furuno FAR3220 radars |
| Complement | 25 |
Project history: Patrol craft. Aluminium construction, variant of Australian Bay design.
Modernizations: None.
Naval service: No significant events.

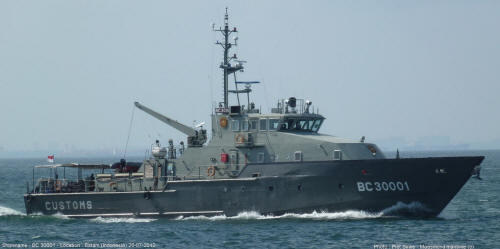

BC30001 2012
