Names |
BC10001, 10002, 20001-20003 |
|
Builders |
Lürssen, Lemwerder, Germany: BC10001, 10002 PT PAL, Surabaya: BC20001-20003 |
|
Commissioned |
5-11/1999: BC10001, 10002, 20001-20003 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
in service (2019): BC10001, 10002, 20001-20003 |
|
Displacement standard, t |
|
|
Displacement full, t |
85 |
|
Length, m |
28.2 |
|
Breadth, m |
6.60 |
|
Draught, m |
1.25 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 16V396 TE94 diesels |
|
Power, h. p. |
3000 |
|
Max speed, kts |
40 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 1100(30) |
|
Armament |
2 x 1 - 7.6/90 |
|
Electronic equipment |
Furuno FR8731 radar |
| Complement | 11 |
Project history: Aluminium construction.
Modernizations: None.
Naval service: No significant events.

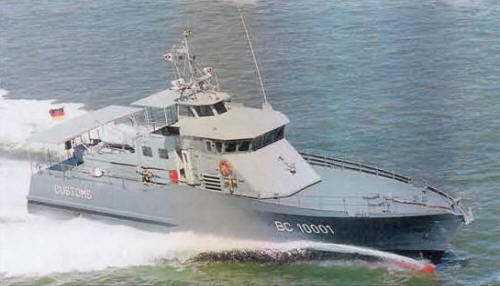

BC10001 1999 (before delivery)

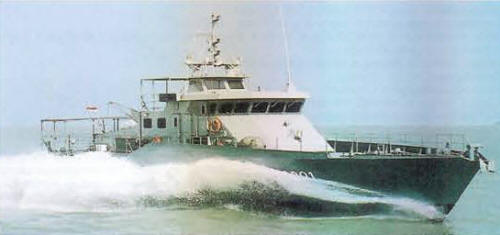

BC20001 1999
