INDONESIAN NAVY (INDONESIA)

NON-NAVAL FORCES

ADRI XLVIII logistics landing craft (2015)

Name No Yard No Builder Laid down Launched Comm Fate
  ADRI XLVIII   PT Kodja i, Tanjung Priok     18.2.2015 in service (2019)
  ADRI XLIX   PT Kodja i, Tanjung Priok     18.2.2015 in service (2019)



Displacement standard, t



Displacement full, t

1000 dwt

Length, m

68.0

Breadth, m

13.5

Draught, m

2.75

No of shafts

2

Machinery

2 diesels

Power, h. p.

1440

Max speed, kts

12

Fuel, t

diesel oil

Endurance, nm(kts) 3000(10)

Armament

none

Electronic equipment

radar
Military load 300 troops, 22 vehicles or 500 t cargo
Complement

Project history: Logistic landing craft. Has bow ramp and can be beached.

Modernizations: None.

Naval service: No significant events.

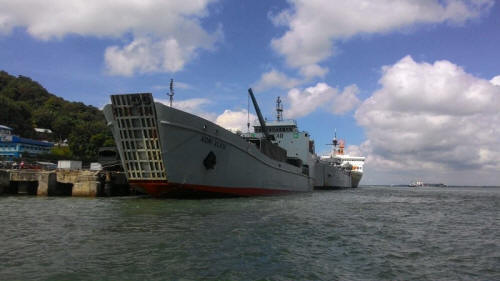

ADRI XLVIII
