INDONESIAN NAVY (INDONESIA)

NON-NAVAL FORCES

ENGGANG patrol boats (2003-2004)

Name No Yard No Builder Laid down Launched Comm Fate
Enggang 4016   Jurong SML, Singapore 3.3.2003 16.9.2003 2.12.2003 in service (2019)
Kolibri     Jurong SML, Singapore 3.3.2003 20.8.2003 12.11.2003 in service (2019)
Murai     Jurong SML, Singapore 3.3.2003 8.10.2003 26.12.2003 in service (2019)
Balam     Jurong SML, Singapore 3.3.2003 30.9.2003 19.1.2004 in service (2019)
Tekukur 643, later- 5010   Jurong SML, Singapore 2003 2003 2003-04 in service (2019)
vi     Jurong SML, Singapore 2003 2003 2003-04 in service (2019)
vii     Jurong SML, Singapore 2003 2003 2003-04 in service (2019)
viii     Jurong SML, Singapore 2003 2003 2003-04 in service (2019)



Displacement standard, t



Displacement full, t

165

Length, m

36.4

Breadth, m

7.10

Draught, m

2.20

No of shafts

2

Machinery

2 MTU 12V4000 M90 diesels

Power, h. p.

5550

Max speed, kts

30

Fuel, t

diesel oil

Endurance, nm(kts) 1200(15)

Armament

3 x 1 - 12.7/90

Electronic equipment

radar
Complement 24

Project history: Patrol craft. Hull numbers include 634, 648 and others.

Modernizations: None.

Naval service: No significant events.

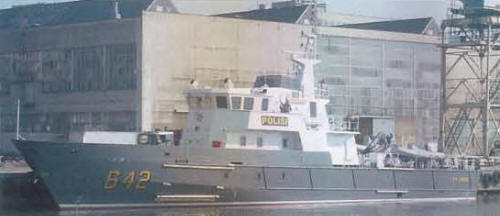

642 2007
