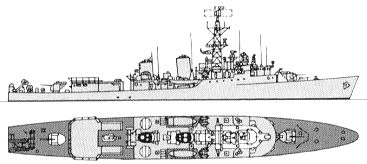

Hasanuddin 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Martha Khristina Tiyahahu (ex-Zulu) | 331 | 674 | Stephen, Govan, UK | 13.12.1960 | 3.7.1962 | 17.4.1964 // 2.5.1985 | stricken 2000 |
| Wilhelmus Zakarias Yohannes (ex-Gurkha) | 332 | 4180 | Thornycroft, Woolston, UK | 3.11.1958 | 11.7.1960 | 13.2.1963 // 21.10.1985 | stricken 2000 |
| Hasanuddin (ex-Tartar) | 333 | Devonport DYd, UK | 22.10.1959 | 19.9.1960 | 26.2.1962 // 3.4.1986 | stricken 2000 |
|
Displacement standard, t |
2300 |
|
Displacement full, t |
2700 |
|
Length, m |
106.7 pp 109.7 oa |
|
Breadth, m |
12.9 |
|
Draught, m |
4.00 max |
|
No of shafts |
1 |
|
Machinery |
COSAG: 1 Metrovick geared steam turbine, 1 Babcock & Wilcox boiler + AEI G6 gas turbine |
|
Power, h. p. |
12500 + 7500 = 20000 |
|
Max speed, kts |
27 |
|
Fuel, t |
oil 400 |
|
Endurance, nm(kts) |
4500(12) |
|
Armament |
2 x 4 Sea Cat GWS21 SAM (24 Sea Cat), 2 x 1 - 120/45 Mk 5, 2 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/79, 1 x 3 - 305 Limbo Mk 10 ASWRL, 1 DCR, 1 helicopter (Wasp) |
|
Electronic equipment |
type 965 AKE-1, type 993, type 903, 2x type 262, type 978 radars, type 170, type 177, type 162 sonars, 2x Corvus decoy RL |
|
Complement |
268 |
Project history: Former RN 'Tribal' class frigates, deleted by RN in March 1984 and purchased by Indonesia 16.4.1984. All were refitted by Vosper before transfer and commissioned by Indonesian Navy in 1985-1986.
Modernizations: None.
Naval service: No significant events.

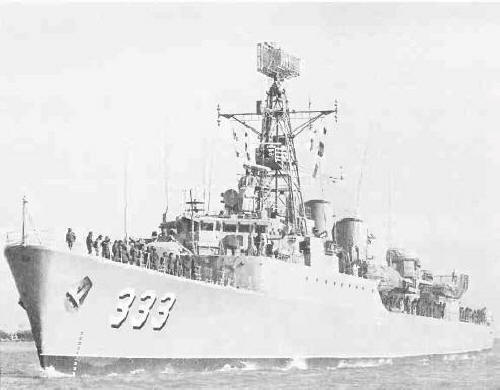

Hasanuddin 1986
Many thanks to Wolfgang Stöhr for additional information on this page.
