Mongisidi 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Samadikun (ex-John R. Perry) | 341 | 841 | Avondale, Westwego, USA | 1.10.1957 | 29.7.1958 | 5.5.1959 // 20.2.1973 | discarded 2006 |
| Martadinata (ex-Charles Berry) | 342 | 905 | American SB, Lorain, USA | 29.10.1958 | 17.3.1959 | 25.11.1959 // 31.1.1974 | discarded 2006 |
| Mongisidi (ex-Claud Jones) | 343 | 840 | Avondale, Westwego, USA | 1.6.1957 | 27.5.1958 | 10.2.1959 // 16.12.1974 | discarded 2005 |
| Ngurah Rai (ex-McMorris) | 344 | 906 | American SB, Lorain, USA | 5.11.1958 | 26.5.1959 | 4.3.1960 // 16.12.1974 | discarded 2005 |
|
Displacement standard, t |
1720 |
|
Displacement full, t |
1970 |
|
Length, m |
91.8 wl 95.1 oa |
|
Breadth, m |
11.8 |
|
Draught, m |
3.70 hull 5.54 sonar |
|
No of shafts |
1 |
|
Machinery |
4 Fairbanks-Morse 38ND81/8 diesels |
|
Power, h. p. |
9240 |
|
Max speed, kts |
22 |
|
Fuel, t |
diesel oil 296 |
| Endurance, nm(kts) | 7000(12) |
|
Armament |
2 x 1 - 76/50 Mk 34, 2 x 3 - 324 Mk 32 TT, 2 x 24 - 178 Hedgehog Mk 11 ASWRL, 1 DCR |
|
Electronic equipment |
SPS-10, SPS-6E, SPG-52 radars, SQS-4 sonar, WLR-1 ECM suite |
|
Complement |
171 |
Project history: Former USN Claud Jones class frigates, considered by USN not too successful.
Modernizations: 1980-1981, Samadikun: - 1 x 1 - 76/50, SQS-4 sonar, WLR-1 ECM; + 1 x 2 - 37/63 V-11M, 1 x 2 - 25/82 2M-3M, 2 x 1 - 12.7/79, 2 DCT, Decca 1226 radar, EDO786 sonar
1980-1981, Martadinata: - 1 x 1 - 76/50, SQS-4 sonar; + 1 x 2 - 37/63 V-11M, 1 x 2 - 25/82 2M-3M, 2 x 1 - 12.7/79, 2 DCT, Decca 1226 radar, SQS-45(v) sonar
1981-1982, Mongisidi: - 1 DCR, SQS-4 sonar; + 2 x 1 - 12.7/79, Decca 1226 radar, SQS-39(v) sonar
1981-1982, Ngurah Rai: - 1 DCR, SQS-4 sonar; + 2 x 1 - 12.7/79, Decca 1226 radar, SQS-42(v) sonar
late 1990s, all: - 2 x 24 Hedgehog ASWRL
early 2000s, Samadikun, Martadinata: - 1 x 2 - 25/82
Naval service: No significant events.

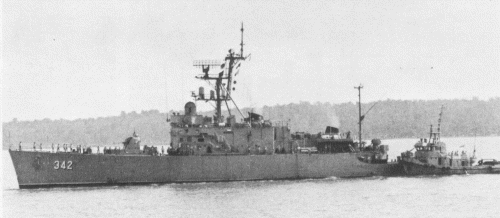

Martadinata 1980

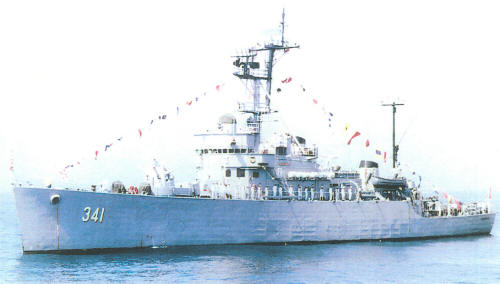

Samadikun 2001
Many thanks to Wolfgang Stöhr for additional information on this page.
