INDONESIAN NAVY (INDONESIA)

ESCORTS

JOS SUDARSO frigates (1954-1955/1963-1965)

Jos Sudarso 1970

Name No Yard No Builder Laid down Launched Comp Fate
Jos Sudarso (ex-Sarych) 351 1124 445 61 Kommunara Yd, Nikolayev, USSR 24.9.1952 31.3.1953 31.8.1954 // 1.1963 stricken 1986
Slamet Rijadi (ex-Puma) 352 1125 445 61 Kommunara Yd, Nikolayev, USSR 25.11.1952 29.4.1953 31.8.1954 // 1.1963 stricken 1973
Ngurah Rai (ex-Korsak) 353 1128 445 61 Kommunara Yd, Nikolayev, USSR 1.8.1953 29.4.1954 30.12.1954 // 1.1963 stricken 1974
Monginsidi (ex-Grizon) 354 1131 445 61 Kommunara Yd, Nikolayev, USSR 15.4.1954 29.11.1954 30.6.1955 // 1.1963 stricken 1971
Lambung Mangkurat (ex-Aist) 357 43 199 Yd, Komsomolsk-on-Amur, USSR 25.12.1952 25.8.1953 27.8.1954 // 4.1965 stricken 1986
Hang Tuah (ex-Zubr) 358 41 199 Yd, Komsomolsk-on-Amur, USSR 29.8.1952 9.7.1953 31.5.1954 // 4.1965 stricken 1971
Kakiali (ex-Bizon) 359 42 199 Yd, Komsomolsk-on-Amur, USSR 4.10.1952 9.7.1953 30.6.1954 // 4.1965 stricken 1985
Nuku (ex-Pelikan) 360 45 199 Yd, Komsomolsk-on-Amur, USSR 1.8.1953 18.4.1954 30.11.1954 // 2.1964 stricken 1971



Displacement standard, t

1050

Displacement normal, t

1337

Length, m

90.9

Breadth, m

10.2

Draught, m

2.90

No of shafts

2

Machinery

2 TV-9 geared steam turbines sets, 2 KVG-57/28 boilers

Power, h. p.

20000

Max speed, kts

29

Fuel, t

oil

Endurance, nm(kts) 1000(14.5)

Armament

3 x 1 - 100/56 B-34USMA, 2 x 2 - 37/70 V-11M, 1 x 3 - 533 TT, 2 x 16 RBU-2500 Smerch ASWRL, 4 DCT, 2 DCR

Sensors Fut-N, Neptun-M, Don, Yakor'-M radars, Pegas-3M sonar, Bizan'-4 ECM suite

Complement

168

Project history: Former Soviet light frigates of Project 50.

Modernizations: None.

Naval service: No significant events.

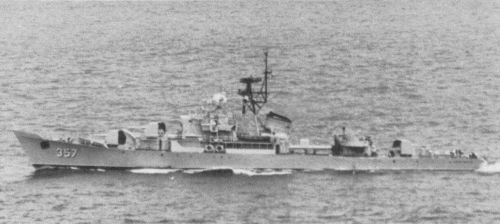

Lambung Mangkurat 1974

Many thanks to Wolfgang Stöhr for additional information on this page.
