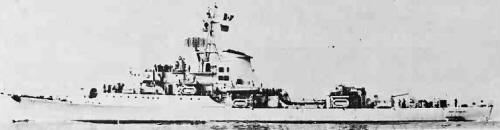

Untung Surapati 1970
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Imam Bondjol | 355, 1960s- 250 | 276 | Ansaldo, Livorno, Italy | 8.1.1956 | 5.5.1956 | 19.5.1958 | stricken 1978 |
| Untung Surapati | 356, 1960s- 251 | 274 | Ansaldo, Livorno, Italy | 8.1.1956 | 5.5.1956 | 28.5.1958 | stricken 1978 |
|
Displacement standard, t |
1300 |
|
Displacement full, t |
1500 |
|
Length, m |
99.1 |
|
Breadth, m |
10.8 |
|
Draught, m |
3.40 max |
|
No of shafts |
2 |
|
Machinery |
2 sets Ansaldo-Parsons geared steam turbines, 2 Ansaldo-Foster Wheeler boilers |
|
Power, h. p. |
24000 |
|
Max speed, kts |
34 |
|
Fuel, t |
oil 350 |
|
Endurance, nm(kts) |
3500(15) |
|
Armament |
2 x 2 - 102/45 Mk 19, 3 x 2 - 40/70 Breda-Bofors type 64, 4 x 2 - 20/70 Mk 24, 1 x 3 - 533 TT, 2 x 24 - 178 Hedgehog Mk 11 ASWRL, 4 DCT, 2 DCR |
|
Electronic equipment |
SPS-6, SPS-10, SPG-34 radars, SQS-4 sonar |
|
Complement |
162 |
Project history: Two fast frigates of the type designed and built earlier for Venezuela as Almirante Clemente class.
Modernizations: None.
Naval service: No significant events.
Imam Bondjol
Many thanks to Wolfgang Stöhr for additional information on this page.
