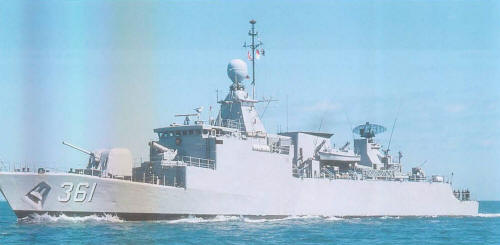

Fatahillah 2000
Nala 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Fatahillah | 361 | 809 | Wilton-Fijenoord, Schiedam, Netherlands | 31.1.1977 | 22.12.1977 | 16.7.1979 | in service (2019) |
| Malahayati | 362 | 810 | Wilton-Fijenoord, Schiedam, Netherlands | 28.7.1977 | 19.6.1978 | 21.3.1980 | in service (2019) |
| Nala | 363 | 811 | Wilton-Fijenoord, Schiedam, Netherlands | 27.1.1978 | 11.1.1979 | 11.8.1980 | in service (2019) |
|
Displacement standard, t |
1150 |
|
Displacement full, t |
1450 |
|
Length, m |
83.9 |
|
Breadth, m |
11.1 |
|
Draught, m |
3.30 |
|
No of shafts |
2 |
|
Machinery |
CODOG: 1 Olympus TM3B gas turbine / 2 MTU 16V956TB81 diesels |
|
Power, h. p. |
25000 / 8000 |
|
Max speed, kts |
30 |
|
Fuel, t |
gas turbine oil, diesel oil |
|
Endurance, nm(kts) |
4250(16) |
|
Armament |
361, 362: 2 x 2 MM38 Exocet SSM (4 MM38), 1 x 1 - 120/46 TAK120, 1 x 1 - 40/70 Bofors 350AFD, 2 x 1 - 20/85 S.20, 2 x 3 - 324 Mk 32 TT (12), 1 x 2 - 375 Bofors ASWRL 363: 2 x 2 MM38 Exocet SSM (4 MM38), 1 x 1 - 120/46 TAK120, 2 x 1 - 40/70 Bofors 350AFD, 2 x 1 - 20/85 S.20, 1 x 2 - 375 Bofors ASWRL, 1 helicopter (NBO-105) |
|
Electronic equipment |
Decca AC1229, DA-05, WM-28 radars, LIROD Mk 1 e/o director, PHS-32 sonar, Susie I ECM suite, 2x Corvus decoy RL, T-Mk 6 Fanfare torpedo decoy, SEWACO CCS |
|
Complement |
82 |
Project history: These compact ships of small frigate type were ordered from the Netherlands n August 1975 and designed by NEVESBU which belonged to Rhine-Schelde-Verolme. Air-conditioned living spaces and NBC warfare citadel. Officially they are classed as corvettes. Nala differs from sisters having a helicopter facility and collapsible hangar for one small helicopter and Bofors 40mm guns abreast the hangar.
Modernizations: None.
Naval service: No significant events.

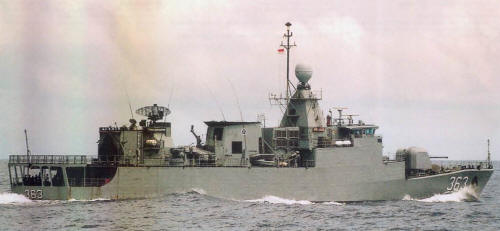

Nala 2000
Fatahillah 2004
Many thanks to Wolfgang Stöhr for additional information on this page.
