Diponegoro 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Diponegoro (ex-Gajah Mada) | 365 | 397 | Damen-Schelde, Vlissingen, Netherlands | 24.3.2005 | 16.9.2006 | 5.7.2007 | in service (2019) |
| Sultan Hasanuddin (ex-Balaputera) | 366 | 398 | Damen-Schelde, Vlissingen, Netherlands | 24.3.2005 | 12.2006 | 24.11.2007 | in service (2019) |
| Sultan Iskandar Muda | 367 | 399 | Damen-Schelde, Vlissingen, Netherlands | 8.5.2006 | 24.11.2007 | 18.10.2008 | in service (2019) |
| Frans Kaisiepo | 368 | 400 | Damen-Schelde, Vlissingen, Netherlands | 8.5.2006 | 28.6.2008 | 7.3.2009 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
1700 |
|
Length, m |
83.5 wl 90.7 oa |
|
Breadth, m |
11.0 wl 13.0 oa |
|
Draught, m |
3.85 |
|
No of shafts |
2 |
|
Machinery |
2 SEMT-Pielstick 20PA6B STC diesels |
|
Power, h. p. |
22030 |
|
Max speed, kts |
28 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
4500(15) |
|
Armament |
2 x 2 MM40 Exocet SSM (4 MM40), 2 x 4 Tetral SAM (16? Mistral), 1 x 1 - 76/62 OTO-Melara Compact SR, 2 x 1 - 20/90 F-2, 2 x 3 - 324 B515 TT, helicopter deck |
|
Electronic equipment |
MW-08, BridgeMaster-E 3500, LIROD Mk 2 (+e/o) radars, Kingklip sonar, Scorpion, DR3000 ECM suites, 2x SKWS DL-12T decoy RL, TACTICOS CCS |
|
Complement |
80 |
Project history: Designed and built in the Netherlands using the modular SIGMA (Ship Integrated Geometrical Modularity Approach) 9113 design. Intended for patrol duties in and around Indonesian waters and the Malaccan Straits. Duties include antipiracy, counter-smuggling, and fisheries patrol. Fitted with 22x12m helicopter landing deck, but no hangar. Ships received Exocet missiles only in 2010.
Modernizations: None.
Naval service: No significant events.

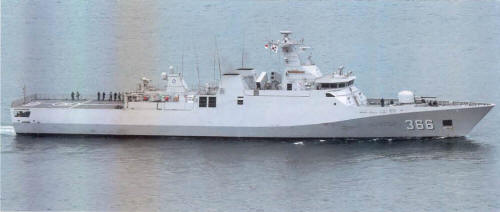

Sultan Hasanuddin 2008
Many thanks to Wolfgang Stöhr for additional information on this page.
