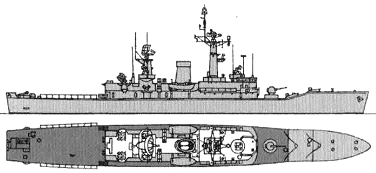

Ahmad Yani 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Ahmad Yani (ex-Tjerk Hiddes) | 351 | 518 | NDSM, Amsterdam, Netherlands | 1.6.1964 | 17.12.1965 | 16.8.1967 // 13.10.1986 | in service (2019) |
| Slamet Riyadi (ex-Van Speijk) | 352 | 517 | NDSM, Amsterdam, Netherlands | 1.10.1963 | 5.3.1965 | 14.2.1967 // 1.11.1986 | in service (2019) |
| Yos Sudarso (ex-Van Galen) | 353 | 328 | KM De Schelde, Vlissingen, Netherlands | 25.7.1963 | 19.6.1965 | 1.3.1967 // 2.11.1987 | in service (2019) |
| Oswald Siahaan (ex-Van Nes) | 354 | 322 | KM De Schelde, Vlissingen, Netherlands | 25.7.1963 | 26.3.1966 | 9.8.1967 // 1.11.1988 | in service (2019) |
| Abdul Halim Perdanakasuma (ex-Evertsen) | 355 | 321 | KM De Schelde, Vlissingen, Netherlands | 6.7.1965 | 18.6.1966 | 21.12.1967 // 1.11.1989 | in service (2019) |
| Karel Satsuit Tubun (ex-Isaac Sweers) | 356 | 519 | NDSM, Amsterdam, Netherlands | 5.5.1965 | 10.3.1967 | 15.5.1968 // 1.11.1990 | in service (2019) |
|
Displacement standard, t |
2200 |
|
Displacement full, t |
2850 |
|
Length, m |
109.7 wl 113.4 oa |
|
Breadth, m |
12.5 |
|
Draught, m |
5.80 |
|
No of shafts |
2 |
|
Machinery |
2 sets Werkspoor-English Electric geared steam turbines, 2 Babcock & Wilcox boilers |
|
Power, h. p. |
30000 |
|
Max speed, kts |
28.5 |
|
Fuel, t |
oil |
|
Endurance, nm(kts) |
4500(12) |
|
Armament |
2 x 4 Harpoon SSM (8 RGM-84A), 2 x 4 Seacat GWS22 SAM (16 Seacat), 1 x 1 - 76/62 OTO-Melara Compact, 4 x 1 - 12.7/90, 2 x 3 - 324 TT, 1 helicopter (Lynx) |
|
Electronic equipment |
802-805: LW-03, DA-05, M45, 2x M44, TM1229C radars, PHS-32 sonar, UA-8, UA-9, UA-13 ECM suites, 2x Corvus decoy RL, SEWACO V CCS 814, 815: LW-03, DA-05, M45, 2x M44, TM1229C radars, PHS-32 sonar, UA-8, UA-9, FH-12 ECM suites, 2x Corvus decoy RL, SEWACO V CCS |
|
Complement |
251 |
Project history: Former Dutch Van Speijk class frigates.
Modernizations: 1996-1997, Yos Sudarso, Oswald Siahaan, Karel Satsuit Tubun: + LIOD MK 2 e/o director
2003-2008, Ahmad Yani, Slamet Riyadi, Yos Sudarso, Abdul Halim Paerdanakasuma: were re-engined with 2 Caterpillar 3616 diesels (14617hp, 22kts)
2003-2008, Oswald Siahaan: was re-engined with 2 SEMT-Pielstick 12PA-6B diesels (14000hp, 22kts)
2003-2008, Karel Satsuit Tubun: was re-engined with 2 Caterpillar 3612 diesels (12512hp, 22kts)
early 2010s, all: - 2 x 4 Seacat GWS22 SAM; + 2 x 2 Simbad SAM (~16 Mistral)
early 2010s, Yos Sudarso and may be others: - 2 x 4 Harpoon SSM; + 2 x 2 Yakhont SSM (8 3M55)
early 2010s, Oswald Siahaan and may be others: - 2 x 4 Harpoon SSM; + 2 x 2 C802 SSM (8 C802)
Naval service: No significant events.
Karel Satsuit Tubun 2004
Many thanks to Wolfgang Stöhr for additional information on this page.
