INDONESIAN NAVY (INDONESIA)

COASTAL FORCES

SIBARAU patrol craft (1967-1968/1973-2002)

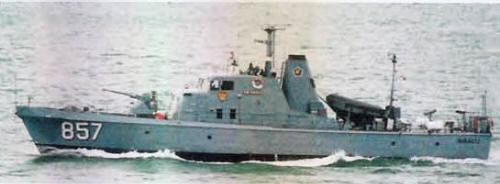

Sibarau 1990

Name No Yard No Builder Laid down Launched Comp Fate
Sibarau (ex-Bandolier) 847   Walkers, Maryborough, Australia 7.1968 2.10.1968 14.12.1968 // 16.11.1973 wrecked 2.12.2017
Siliman (ex-Archer) 848   Evans Deakin, Brisbane, Australia 7.1967 2.12.1967 15.5.1968 // 1974 in service (2019)
Sigalu (ex-Barricade) 857   Evans Deakin, Brisbane, Australia 12.1967 29.6.1968 26.10.1968 // 22.4.1982 in service (2019)
Silea (ex-Acute) 858   Evans Deakin, Brisbane, Australia 4.1967 26.8.1967 24.4.1968 // 6.5.1983 in service (2019)
Siribua (ex-Bombard) 859   Evans Deakin, Brisbane, Australia 4.1968 6.7.1968 5.11.1968 // 11.1983 in service (2019)
Siada (ex-Barbette) 862   Walkers, Maryborough, Australia 11.1967 10.4.1968 16.8.1968 // 2.2.1985 in service (2019)
Sikuda (ex-Attack) 863   Evans Deakin, Brisbane, Australia 9.1966 8.4.1967 17.11.1967 // 24.5.1985 in service (2019)
Sigurot (ex-Assail) 864   Evans Deakin, Brisbane, Australia   18.11.1967 12.7.1968 // 30.1.1986 in service (2019)
Tenggiri (ex-Ardent) 865   Evans Deakin, Brisbane, Australia   27.4.1968 26.10.1968 // 2002 in service (2019)

Displacement standard, t

125

Displacement full, t

146

Length, m

32.8 oa 30.5 pp

Breadth, m

6.20

Draught, m

1.90

No of shafts

2

Machinery

2 Paxman 16YJCM diesels

Power, h. p.

3500

Max speed, kts

21

Fuel, t

diesel oil 20

Endurance, nm(kts) 1220(13)

Armament

1 x 1 - 40/60 Mk 7, 2 x 1 - 12.7/90

Electronic equipment

2x Decca RM916 radars

Complement

19

Project history: Former Australian Attack class patrol craft.

Modernizations: None.

Naval service: Sibarau sank in the storm Malacca Strait in December 2017.

Sigalu 1999
