Todak 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Pandrong | 801 | PT PAL, Surabaya | 1992 | in service (2019) | |||
| Sura | 802 | PT PAL, Surabaya | 1993 | in service (2019) | |||
| Todak | 803, early 2010s- 631 | PT PAL, Surabaya | 4.5.2000 | in service (2019) | |||
| Hiu | 804, early 2010s- 634 | PT PAL, Surabaya | 9/2000 | in service (2019) | |||
| Layang | 805, early 2010s- 635 | PT PAL, Surabaya | 10.7.2002 | in service (2019) | |||
| Dorang, 2005- Lemadang | 806, early 2010s- 632 | PT PAL, Surabaya | 8/2004 | in service (2019) |
|
Displacement standard, t |
342 |
|
Displacement full, t |
801, 802: 428 803-806: 447 |
|
Length, m |
54.4 wl 58.1 oa |
|
Breadth, m |
7.62 |
|
Draught, m |
801, 802: 2.75 propellers 803-806: 2.85 propellers |
|
No of shafts |
2 |
|
Machinery |
2 MTU 16V956 TB92 diesels |
|
Power, h. p. |
8260 |
|
Max speed, kts |
27 |
|
Fuel, t |
diesel oil 110 |
|
Endurance, nm(kts) |
6100(15) |
|
Armament |
1 x 1 - 57/70 Bofors SAK Mk 2, 1 x 1 - 40/70 Bofors 350AFD, 2 x 1 - 20/85 S.20 |
|
Sensors |
801, 802: Decca 2459 radar, LIOD Mk 2 e/o director, DR-2000S3, Telegon-8 ECM suites, Dagaie decoy RL 803-806: type 1007, Scout Variant, LIROD Mk 2 radars, LIOD Mk 2 e/o director, DR-3000S1, Telegon-8 ECM suites, Dagaie decoy RL, TACTICOS CCS |
|
Complement |
53 |
Project history: First two belong to FPB 57 variant IV design, others to Variant V with enhanced electronics.
Modernizations: 2008, Pandrong, Hiu, Layang: + 2 x 1 C-802 SSM (2 YJ-82)
Naval service: No significant events.

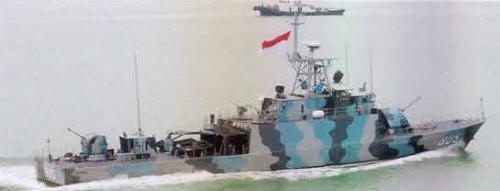

Layang 2007
