Tjakalang 1965
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Tenggiri (ex-PC1183) | 309, 1975- 806 | Gibbs Gas Engine, Jacksonville, USA | 10.1942 | 7.7.1943 | 12.1943 // 3.1960 | stricken 1975 | |
| Tjakalang (ex-Pierre, ex-PC1411) | 313, 1975- 807 | 226 | Defoe, Bay City, USA | 3.1943 | 22.6.1943 | 12.1943 // 10.1958 | stricken 1981 |
| Torani (ex-Manville, ex-PC581) | 317, 1975- 808 | Albina, Portland, USA | 2.1942 | 8.7.1942 | 10.1942 // 3.1960 | stricken 1979 | |
| Hiu (ex-Malvern, ex-PC580) | 318, 1975- 805 | Albina, Portland, USA | 1.1942 | 29.4.1942 | 9.1942 // 3.1960 | stricken early 1990s | |
| Alu Alu (ex-PC787) | 1975- 809 | Commercial Iron Wks, Portland, USA | 1.1943 | 12.2.1943 | 11.1943 // 3.1960 | stricken 1975 |
|
Displacement standard, t |
280 |
|
Displacement full, t |
335 |
|
Length, m |
51.8 wl 52.9 oa |
|
Breadth, m |
7.06 |
|
Draught, m |
2.60 full load |
|
No of shafts |
2 |
|
Machinery |
2 General Motors diesels |
|
Power, h. p. |
2880 |
|
Max speed, kts |
20 |
|
Fuel, t |
diesel oil 49 |
| Endurance, nm(kts) | 5000(10) |
|
Armament |
1 x 1 - 76/50 Mk 22, 1 x 1 - 40/60 Mk 3, 3 x 1 - 20/70 Mk 10, 2 x 4 - 178 Mousetrap Mk 20 ASWRL, 2 DCT, 2 DCR |
|
Electronic equipment |
SPS-10, Decca 110 radars, QHA sonar |
| Complement | 54 |
Project history: Former US PC 173ft submarine chasers.
Modernizations: early 1970s, all survived: - 1 x 1 - 40/60, 3 x 1 - 20/70, 2 x 4 - 178 Mousetrap ASWRL; + 2 x 2 - 25/80 2M-3M, 2 x 2 - 12.7/79, 1 x 24 - 178 Hedgehog Mk 10 ASWRL
Naval service: No significant events.

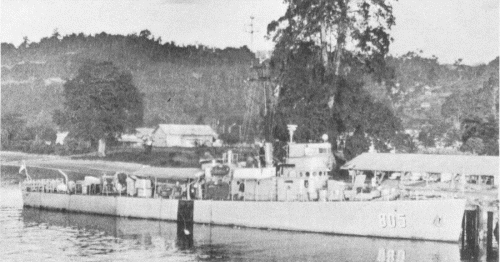

Hiu 1980
Many thanks to Wolfgang Stöhr for additional information on this page.
