| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Cucut (ex-Jupiter) | 866 | SSE, Singapore | 3.4.1990 | 19.8.1991 // 23.3.2002 | in service (2019) |
|
Displacement standard, t |
140 |
|
Displacement full, t |
170 |
|
Length, m |
33.4 pp 35.8 oa |
|
Breadth, m |
7.10 |
|
Draught, m |
2.30 |
|
No of shafts |
2 |
|
Machinery |
2 Deutz-MWM TBD234 V12 diesels |
|
Power, h. p. |
1360 |
|
Max speed, kts |
14 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 200(14) |
|
Armament |
1 x 1 - 20/90 GAM-B01, 2 x 1 - 12.7/90 |
|
Electronic equipment |
Decca 1226 radar |
|
Complement |
33 |
Project history: Decommissioned from the Singapore Navy during September 2001 and transferred in 2002 for use as a patrol craft. Sophisticated multipurpose craft originally capable of performing mine-clearance route survey work, acting as a diving tender, or assisting in salvage operations. Carries a towed side-scan high-resolution sonar and has an underwater data logging system and precision navigation equipment. To assist divers, has a two-man decompression chamber and two high-pressure compressors. Carries a ten-man rigid inflatable dinghy with a 60hp engine, handled by a 1.5t crane. Designed with German assistance.
Modernizations: None.
Naval service: No significant events.

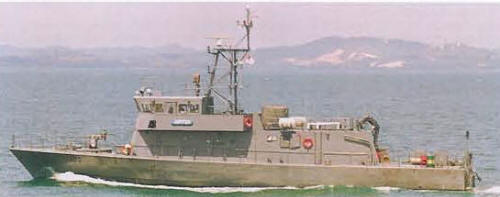

Jupiter 2002
