Names |
BT401-404, early 1990s- BC401-404 BT501-504, early 1990s- BC501-504 BT601-604, early 1990s- BC601-604 BT701-704, early 1990s- BC701-704 BT801-804, early 1990s- BC801-804 BT901-904, early 1990s- BC901-904 |
|
Builders |
Lürssen Indonesia: BT401-404, 501-504, 601-604, 701-704, 801-804, 901-904 |
|
Commissioned |
1960-1962: BT401-404, 501-504, 601-604, 701-704, 801-804, 901-904 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
late 1990s: BC401-404 late 2010s: BC501-504, 601-604, 701-704, 801-804, 901-904 |
|
Displacement standard, t |
|
|
Displacement full, t |
68 |
|
Length, m |
28.0 |
|
Breadth, m |
5.40 |
|
Draught, m |
1.80 |
|
No of shafts |
2 |
|
Machinery |
2 diesels |
|
Power, h. p. |
2700 |
|
Max speed, kts |
30 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
|
|
Armament |
1 x 1 - 12.7/90 |
|
Sensors |
radar |
|
Complement |
19 |
Project history: Lürssen designed patrol boats.
Modernizations: None.
Naval service: No significant events.

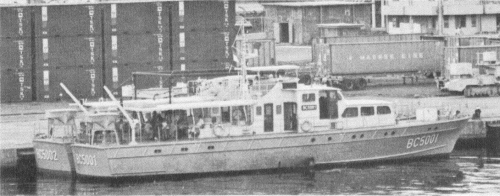

similar BC5001
© Ivan Gogin, 2016
