Adjak 1965
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Adjak | 601 | Lürssen, Vegesack, West Germany | 1959 | stricken 1974 | |||
| Anoa | 602, 1977- 655 | Lürssen, Vegesack, West Germany | 1959 | stricken 1981 | |||
| Beruang | 603, 1977- 652 | Lürssen, Vegesack, West Germany | 1959 | stricken 1987 | |||
| Harimau | 604, 1977- 654 | Lürssen, Vegesack, West Germany | 1959 | stricken 1987 | |||
| Matjan Kumbang | 605, 1977- 653 | Lürssen, Vegesack, West Germany | 1960 | stricken 1979 | |||
| Matjan Tutul | 606 | Lürssen, Vegesack, West Germany | 1960 | sunk 15.1.1962 | |||
| Serigala | 607 | Lürssen, Vegesack, West Germany | 1960 | stricken 1977 | |||
| Singa | 608 | Lürssen, Vegesack, West Germany | 1960 | stricken 1974 |
|
Displacement standard, t |
160 |
|
Displacement full, t |
220 |
|
Length, m |
39.8 wl 42.6 oa |
|
Breadth, m |
7.10 |
|
Draught, m |
2.90 |
|
No of shafts |
4 |
|
Machinery |
4 Mercedes-Benz diesels |
|
Power, h. p. |
14400 |
|
Max speed, kts |
43 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1000(32) |
|
Armament |
2 x 1 - 40/70 Bofors 350, 4 - 533 TT |
|
Electronic equipment |
Decca 1226 radar |
|
Complement |
39 |
Project history: 'TNC 45' boats built by Lürssen, Vegesack, in 1959-60. The first four boats had wooden hulls, but the second four were built of steel.
Modernizations: None.
Naval service: Matjan Tutul sunk 15.1.1962 by Dutch warships off Borneo while trying to land infiltrators in New Guinea.

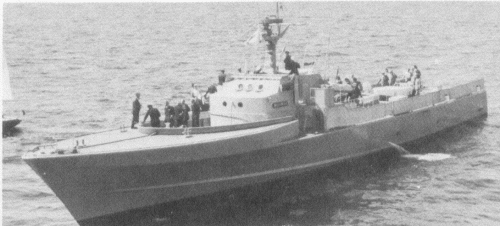

Harimau on trials
