Cuddalore 1975
|
Name |
No |
Yard No |
Builder |
Laid down |
Launched |
Comp |
Fate |
|
कुड्डलौर [Cuddalore] (ex-Wennington) |
M1190, 1975- M90 |
Doig, Grimsby |
1954 |
6.4.1955 |
1955 // 8.1956 |
deleted 1987 |
|
|
कण्णनौर [Cannanore] (ex-Whiton) |
M1191, 1975- M91 |
Fleetlands, Gosport |
1955 |
30.1.1956 |
1956 |
deleted 1987 |
|
|
कारवाड़ [Karwar] (ex-Overton) |
M1197, 1975- M92 |
Camper & Nicholson, Gosport |
1955 |
28.1.1956 |
8/1956 |
deleted 1986 |
|
|
काकीनाड़ा [Kakinada] (ex-Durweston) |
M1201, 1975- M93 |
Dorset Yacht, Poole, Poole |
1954 |
18.8.1955 |
1956 // 8.1956 |
deleted 1987 |
|
Displacement standard, t |
360 |
|
Displacement full, t |
425 |
|
Length, m |
42.7 pp 46.3 oa |
|
Breadth, m |
8.80 |
|
Draught, m |
2.50 max |
|
No of shafts |
2 |
|
Machinery |
2 Napier Deltic diesels |
|
Power, h. p. |
3000 |
|
Max speed, kts |
15 |
|
Fuel, t |
diesel oil 45 |
| Endurance, nm(kts) | 3000(8) |
|
Armament |
1 x 1 - 40/60 Mk 7, 1 x 2 - 20/70 Mk 9, LL mechanical/magnetic/acoustic minesweeping gear |
|
Electronic equipment |
type 978 radar |
|
Complement |
29 |
Project history: Former British Ton class coastal minesweepers, two were transferred before and two after commissioning by RN.
Modernizations: None.
Naval service: No significant events.

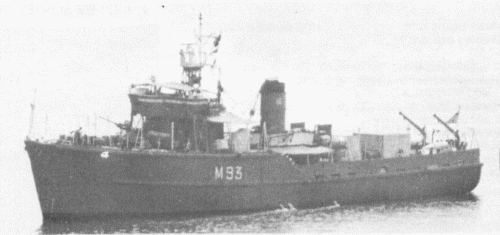

Kakinada 1977
