similar Magar 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp. | Fate |
| केसरी [Kesari] | L15 | Garden Reach, Kolkata | 8.6.2005 | 5.4.2008 | in service (2019) | ||
| शार्दुल [Shardul] | L16 | Garden Reach, Kolkata | 3.4.2004 | 4.1.2007 | in service (2019) | ||
| ऐरावत [Airavat] | L24 | Garden Reach, Kolkata | 27.3.2006 | 19.5.2009 | in service (2019) |
|
Displacement standard, t |
3200 |
|
Displacement full, t |
5655 |
|
Length, m |
120.0 pp 124.8 oa |
|
Breadth, m |
17.5 |
|
Draught, m |
3.80 |
|
No of shafts |
2 |
|
Machinery |
2 SEMT-Pielstick 12PA6 V280STC diesels |
|
Power, h. p. |
8560 |
|
Max speed, kts |
15 |
|
Fuel, t |
diesel oil 420 |
|
Endurance, nm(kts) |
3000(14) |
|
Armament |
2 x 1 - 30/80 Medak CRN-91, 2 x 18 - 140 WM-18 RL, 1 helicopter (Sea King) |
|
Military load |
4 LCVP, 15 tanks or 750 t cargo, 500 troops |
|
Electronic equipment |
ZW-06, nav. radars, EON-51 e/o system, Ajanta ECM suite, 2x decoy RL |
|
Complement |
136 |
Project history: Improved Magar class.
Modernizations: None.
Naval service: No significant events.

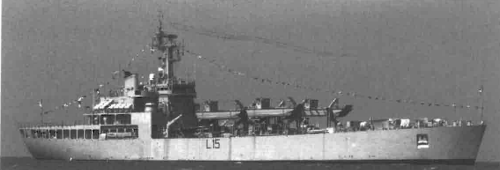

Kesari 2009
© Ivan Gogin, 2018-19
