L34 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp. | Fate |
| LCU Mk I | |||||||
| L31 | Goa SYd | 1978 | stricken 2002 | ||||
| L32 | Goa SYd | 1978 | stricken 4.2011 | ||||
| LCU Mk II | |||||||
| L33 | Hoogly Dock, Calcutta | 1980 | stricken 2002 | ||||
| L34 | Hoogly Dock, Calcutta | 29.11.1977 | 28.1.1980 | stricken 4.2011 | |||
| L35 | Hoogly Dock, Calcutta | 16.3.1980 | 17.12.1983 | stricken 2015 | |||
| LCU Mk III | |||||||
| L36 | Goa SYd | 18.7.1986 | stricken 2.2018 | ||||
| L37 | Hoogly Dock, Calcutta | 18.10.1986 | stricken 2.2018 | ||||
| L38 | Goa SYd | 10.12.1986 | in service (2019) | ||||
| L39 | Hoogly Dock, Calcutta | 25.3.1987 | in service (2019) | ||||
|
Displacement standard, t |
|
|
Displacement full, t |
500 |
|
Length, m |
53.2 pp 57.5 oa |
|
Breadth, m |
8.20 |
|
Draught, m |
1.57 - 1.71 aft |
|
No of shafts |
3 |
|
Machinery |
3 Kirloskar-MAN R8V16/18 TL diesels |
|
Power, h. p. |
1690 |
|
Max speed, kts |
11 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1000(8) |
|
Armament |
2 x 1 - 40/60 Mk 3 |
|
Military load |
120 troops or 250 t cargo or 2 light tanks |
|
Electronic equipment |
Decca 1229 radar |
|
Complement |
47 |
Project history: Indigenious design of LCU.
Modernizations: None.
Naval service: No significant events.

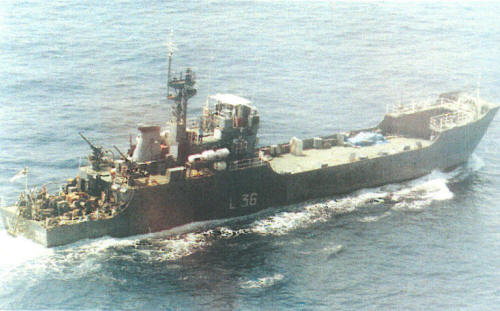

L36 1999
