Cheetah 2000
Name | No | Yard No | Builder | Laid down | Launched | Comp. | Fate |
चीता [Cheetah] | L18 | Stocznia Północna, Gdańsk, Poland | 19.10.1983 | 2.1985 | in service (2019) | ||
महिष [Mahish] | L19 | Stocznia Północna, Gdańsk, Poland | 25.6.1984 | 7.1985 | stricken 11.2016 | ||
गुलदार [Guldar] | L21 | Stocznia Północna, Gdańsk, Poland | 4.6.1985 | 3.1986 | in service (2019) | ||
कुम्भीर [Kumbhir] | L22 | Stocznia Północna, Gdańsk, Poland | 3.5.1986 | 11.1986 | in service (2019) |
Displacement standard, t |
1192 |
Displacement full, t |
1305 |
Length, m |
81.3 pp 83.9 oa |
Breadth, m |
8.61 wl 9.70 oa |
Draught, m |
1.22 fwd 2.10 aft |
No of shafts |
2 |
Machinery |
2 40DM M3 diesels |
Power, h. p. |
4400 |
Max speed, kts |
18 |
Fuel, t |
diesel oil |
Endurance, nm(kts) |
1500(14) |
Armament |
2 x 2 - 30/71 AK-230, 2 x 18 - 140 WM-18 RL, helicopter deck |
Military load |
84 troops, 350 t cargo or 6 tanks |
Electronic equipment |
Don-2, MR-104 Rys' radars |
Complement |
42 |
Project history: Soviet project 773IM, with helicopter deck.
Modernizations: 2012, Mahish, Kumbir: were re-engined with 2 SEMT-Pielstick 6PA6 L280 diesels.
Naval service: No significant events.

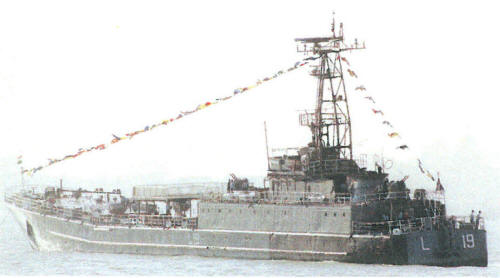

Mahish 2001
