Rajput 1980
Rajput 2005
Ranvijay 2005
Ranvir 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| राजपूत [Rajput] (ex-Надёжный [Nadyozhnyy]) | D51 | 2201 | 61 Kommunar Yd, Nikolayev, USSR | 11.9.1976 | 17.9.1977 | 30.11.1979 // 30.9.1980 | in service (2019) |
| राणा [Rana](ex-Губительный [Gubitelnyy]) | D52 | 2202 | 61 Kommunar Yd, Nikolayev, USSR | 29.11.1976 | 27.9.1978 | 30.9.1981 // 28.6.1982 | in service (2019) |
| रणजीत [Ranjit] (ex-Ловкий [Lovkiy]) | D53 | 2203 | 61 Kommunar Yd, Nikolayev, USSR | 29.6.1977 | 16.6.1979 | 20.7.1983 // 24.11.1983 | stricken 5.2019 |
| रणवीर [Ranvir] (ex-Твёрдый [Tviordyy]) | D54 | 2204 | 61 Kommunar Yd, Nikolayev, USSR | 24.10.1981 | 12.3.1983 | 30.12.1985 // 28.10.1986 | in service (2019) |
| रणविजय [Ranvijay] (ex-Толковый [Tolkovyy]) | D55 | 2205 | 61 Kommunar Yd, Nikolayev, USSR | 19.3.1982 | 1.2.1986 | 15.10.1987 // 15.1.1988 | in service (2019) |
|
Displacement standard, t |
D51-53: 4025 D54, 55: 4185 |
|
Displacement full, t |
D51-53: 4905 D54, 55: 5055 |
|
Length, m |
146.2 |
|
Breadth, m |
15.8 |
|
Draught, m |
D51-53: 4.85 hull 6.83 max D54, 55: 4.87 hull 6.85 max |
|
No of shafts |
2 |
|
Machinery |
2 M-3EE gas turbine units |
|
Power, h. p. |
72000 |
|
Max speed, kts |
33 |
|
Fuel, t |
gas turbine oil |
|
Endurance, nm(kts) |
3500(18) |
|
Armament |
D51-53: 4 x 1 Termit SSM (4 P-20), 2 x 2 M-1 Volna-M SAM (32 V-601(4K91)), 1 x 2 - 76/59 AK-726, 2 x 2 - 30/71 AK-230, 1 x 5 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 1 helicopter (Ka-25) D54, 55: 4 x 1 Termit-M SSM (4 P-20M), 2 x 2 M-1 Volna-P SAM (32 V-601P), 1 x 2 - 76/59 AK-726, 4 x 6 - 30/54 AK-630, 1 x 5 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 1 helicopter (Ka-28) |
|
Electronic equipment |
D51-53: MR-500 Kliver, MR-310 Angara-A, 2x Yatagan, MR-105 Turel', 2x MR-104 Rys', 2x Volga radars, MGK-335 Platina sonar, Krab-11, Krab-12, MRP-11-14M, MRP-15-16M ECM suites, 4x PK-16 decoy RL, Planshet-61ME CCS D54, 55: MR-500 Kliver, MR-310 Angara-A, 2x Yatagan II, MR-105 Turel', 2x MR-123 Vympel, 2x Volga radars, MGK-335 Platina sonar, MP-401E Start ECM suite, 4x PK-16 decoy RL, Planshet-61ME CCS |
|
Complement |
D51-53: 312 D54, 55: 315 |
Project history: Soviet project 61ME, export version of project 61M. New construction and unlike in modified Soviet units the Termit SSM are mounted forward. The aft 76mm turret has been deleted to provide a helicopter hangar reached by a ramp.
Modernizations: 1990s, all: + MG-325 Vega sonar
2003, Rajput: - 4 x 1 Termit SSM, Krab-11, Krab-12, MRP-11-14M, MRP-15-16M ECM; + 2 x 2 BrahMos SSM (4 BrahMos), Ajanta ECM
2004-2006, Ranvijay, Ranvir: - Krab-11, Krab-12, MRP-11-14M, MRP-15-16M ECM; + Ajanta ECM
2006, Ranvijay; 2008, Ranvir: - 1 x 2 M-1 Volna-P SAM, 2 x 6 - 30/54, MR-310 Angara-A, Yatagan II, MR-123 Vympel radars, MGK-335 Platina sonar; + 1 x 8 BrahMos SSM (VLS, 8 BrahMos), 2 x 8 Barak-1 SAM (VLS, 16 Barak-1), EL/M-2238, 2 x EL/M-2221 radars, HUMSA sonar
early 2010s, Rana, Ranjit: - 2 x MR-104 Rys' radars
early 2010s, all: - 2 x Volga radars; + 2x Rashmi radars, TQN-2 ECM suite
early 2010s, Rana, Ranjit, Ranvir, Ranvijay: - MR-500 Kliver radar; + RAWL-02 radar
late 2010s, Ranvir, Ranvijay: - Planshet-61ME CCS; + CMS-SNF CCS
2015, Ranvir: - 1 x 2 - 76/59; + 1 x 1 - 76/62 OTO-Melara Compact SR
Naval service: No significant events.

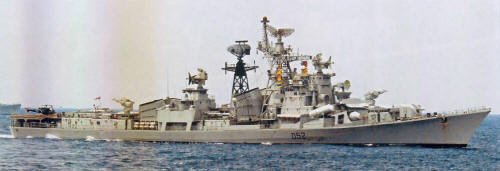

Rana 2008
