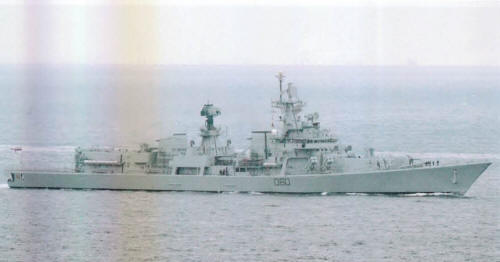

Delhi 2000
Mysore 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| मैसूर [Mysore] | D60 | Mazagon Docks, Mumbai | 2.2.1991 | 4.6.1993 | 2.6.1999 | in service (2019) | |
| दिल्ली [Delhi] | D61 | Mazagon Docks, Mumbai | 14.11.1987 | 1.2.1991 | 15.11.1997 | in service (2019) | |
| मुम्बई [Mumbai] (ex-Bombay) | D62 | Mazagon Docks, Mumbai | 14.12.1992 | 20.3.1995 | 22.1.2001 | in service (2019) |
|
Displacement standard, t |
5000 |
|
Displacement full, t |
6800 |
|
Length, m |
163.0 |
|
Breadth, m |
17.4 |
|
Draught, m |
6.50 |
|
No of shafts |
2 |
|
Machinery |
COGAG: 4 Zoria-Mashproekt DT-59 gas turbines |
|
Power, h. p. |
82820 |
|
Max speed, kts |
30 |
|
Fuel, t |
gas turbine oil |
|
Endurance, nm(kts) |
5000(18) |
|
Armament |
4 x 4 Uran SSM (16 3M24), 2 x 1 Kashmir SAM (48 Kashmir), 1 x 1 - 100/59 AK-100, 4 x 6 - 30/54 AK-630M, 4 x 1 - 12.7/79, 2 x 2 - 533 TT (4 SET-65E or 53-65), 2 x 12 RBU-6000 ASWRL, 2 helicopters (Sea King Mk 42B or Dhruv) |
|
Electronic equipment |
3x MR-212/201 Vaygach-U, MR-755M2 Fregat-MA, Apurna, MR-184 Lev, 6x OP-3 Orekh, RAWL-02, 2x MR-123 Vympel radars, HUMVAD HUS-003, 15-750 sonars, Ajanta, MBAT or MMT ECM suites, 4x PK-2 decoy RL, Shikari CCS |
|
Complement |
360 |
Project history: Indian Project 15. Bombay was renamed early in 2000.
Hull lines said to have been derived from the project 61ME. Have nonretracting fin stabilizers. Helicopter landing aid and deck-traversing equipment is installed. An NBC water washdown system is installed, and the ships are divided internally into six independent citadels with independent power and communications systems. Mysore has enhanced air-conditioning capability to prevent overheating of electronic components. All are equipped to serve as flagships. Soviet and European weapons and European-designed/Indian-improved-and-manufactured electronics were employed. The Russian Shtil SAM system is known as the Kashmir in Indian service. The launch system for the antiship missiles is the Russian 3R60UE system.
Modernizations: 2003, Delhi; 2005, Mysore: - 2 x 6 - 30/54, 2x MR-123 Vympel radars; + 2 x 16 Barak-1 SAM (VLS, 32 Barak-1), 2x EL/M-2221 radars
early 2010s, Delhi, Mumbai: - HUMVAD HUS-003, 15-750 sonars; + HUMSA, ATAS sonars
Naval service: No significant events.
Mysore 2007
