Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
विक्रम [Vikram] | 33 | Kattupalli, Chennai | 3/2016 | 27.10.2017 | 11.4.2018 | in service (2019) | |
विजय [Vijaya] | 34 | Kattupalli, Chennai | 2016 | 20.1.2018 | 14.9.2018 | in service (2019) | |
वीरा [Veera] | 35 | Kattupalli, Chennai | 2017 | 28.8.2018 | 15.4.2019 | in service (2019) | |
वराह [Varaha] | 41 | Kattupalli, Chennai | 2017 | 2.11.2018 | 2019 | building (2019) | |
v | Kattupalli, Chennai | 3.7.2018 | 2019 | 2020 | building (2019) | ||
vi | Kattupalli, Chennai | 3.7.2018 | 2019 | 2020 | building (2019) |
Displacement standard, t |
2140 |
Displacement full, t |
2360 |
Length, m |
97.0 |
Breadth, m |
15.0 |
Draught, m |
3.60 |
No of shafts |
2 |
Machinery |
2 diesels |
Power, h. p. |
|
Max speed, kts |
26 |
Fuel, t |
diesel oil |
Endurance, nm(kts) |
5000(14) |
Armament |
1 x 1 - 30/80 Medak CRN-91, 2 x 1 - 12.7/90, 1 helicopter (Dhruv) |
Sensors |
surface search, 2x nav. radars, e/o system |
Complement |
Project history: New patrol ships, totally 7 ships in the class.
Modernizations: None.
Naval service: No significant events.

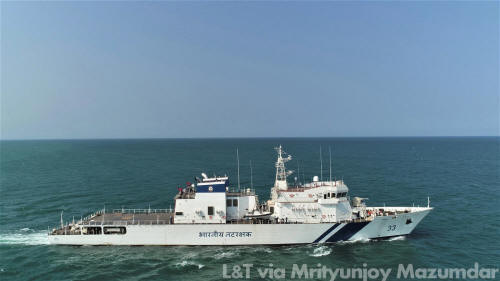

Vikram 2018
