ROYAL INDIAN MARINE (INDIA)

COASTAL FORCES

RAJTARANG large patrol craft (1984-1986)

Name No Yard No Builder Laid down Launched Comp Fate
राजतरंग [Rajtarang] T56   Garden Reach, Calcutta   2.1981 1984 to Mauritius 1993 (Guardian)
राजश्री [Rajshree] T57   Garden Reach, Calcutta   27.5.1983 1984 stricken 1998
  T58   Goa SYd 17.2.1983 20.12.1983 1984 stricken 2011
  T59   Goa SYd 24.3.1983 20.3.1984 29.3.1984 stricken 2011
राजकमल [Rajkamal] T60   Goa SYd   17.1.1984 10.1984 stricken 2011



Displacement standard, t

167

Displacement full, t

210

Length, m

32.2 pp 37.8 oa

Breadth, m

7.50

Draught, m

1.30 hull 1.85 propellers

No of shafts

2

Machinery

2 MTU 16V538 TB92 diesels

Power, h. p.

6820

Max speed, kts

30

Fuel, t

diesel oil

Endurance, nm(kts)



Armament

2 x 1 - 40/60 Mk 3

Sensors

Bharat 1245 radar

Complement

32

Project history: SDB Mk 3 design. SDB Mk 2 with better hullform, without cruising engine and sonar.

Modernizations: None.

Naval service: No significant events.

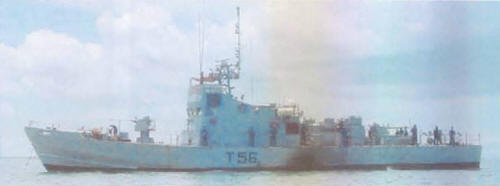

Rajtarang 2004
