ROYAL INDIAN MARINE (INDIA)

COASTAL FORCES

ABHAY patrol craft (1989-1991)

Abhay 2000

Name No Yard No Builder Laid down Launched Comp Fate
अभय [Abhay] (ex-ΜΟΚ-211 [MPK-211]) P33 901 Yaroslavl' SYd, USSR 13.3.1987 20.4.1988 10.3.1989 in service (2019)
अजय [Ajay] (ex-ΜΟΚ-218 [MPK-218]) P34 903 Yaroslavl' SYd, USSR 1989 1990 24.1.1990 in service (2019)
अक्षय [Akshay] (ex-ΜΟΚ-206 [MPK-206] ) P35 904 Yaroslavl' SYd, USSR 22.12.1988 9.1.1990 10.12.1990 in service (2019)
ाग्रय [Agray] (ex-ΜΟΚ-208 [MPK-208]) P36 905 Yaroslavl' SYd, Russia 11.8.1989 20.7.1990 30.1.1991 stricken 1.2017



Displacement standard, t

444

Displacement full, t

495

Length, m

56.1

Breadth, m

10.2

Draught, m

2.10 hull 3.58 max

No of shafts

2

Machinery

2 M-521-TM5 diesels

Power, h. p.

18000

Max speed, kts

30.5

Fuel, t

diesel oil

Endurance, nm(kts)

1600(14)

Armament

1 x 4 Igla-1M SAM (16 9M313M), 1 x 1 - 76/59 AK-176M, 1 x 6 - 30/54 AK-630M, 1 x 7 - 55 MRG-1 Ogonyok grenade launcher, 2 x 2 - 533 TT (4), 2 x 5 RBU-1200M Uragan ASWRL, 2 DCR (12)

Sensors

MR-123 Vympel-A, MR-220 Reyd, Pozitiv-E, Liman radars, MGK-345 Bronza sonar suite, 2x PK-16 decoy RL

Complement

38

Project history: Soviet project 1241PE small ASW ships.

Modernizations: None.

Naval service: No significant events.

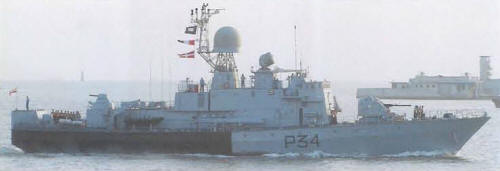

Ajay 2007
