| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Sea Panther | PL3 | Hong Kong SY, Kowloon | 17.6.1986 | 17.4.1987 | 1.2.1988 | to China 7.1997 (PL3) | |
| Sea Horse | PL4 | Hong Kong SY, Kowloon | 17.6.1986 | 14.7.1987 | 1.2.1988 | to China 7.1997 (PL4) |
|
Displacement standard, t |
420 |
|
Displacement full, t |
450 |
|
Length, m |
40.0 |
|
Breadth, m |
8.50 |
|
Draught, m |
|
|
No of shafts |
2 |
|
Machinery |
2 Caterpillar 3512 diesels |
|
Power, h. p. |
2350 |
|
Max speed, kts |
14 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1300(14) |
|
Armament |
2 x 1 - 12.7/90 |
| Military load | two platoons of troops |
| Electronic equipment | Decca C342, Decca C348 radars |
|
Complement |
27 - 33 |
Project history: Command vessels of Marine District of the RHKPF.
Modernizations: None.
Naval service: No significant events.

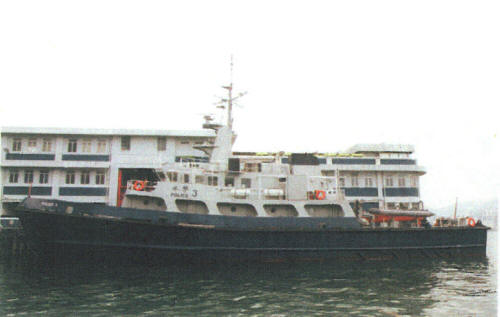

Sea Panther 1992
