Names |
PL60 PL61 Pisces PL62 PL63 PL64 PL65 Cetus PL66 Dorado PL67 PL68 |
|
Builders |
Chung Wah SB, Kowloon: PL60-68 |
|
Commissioned |
1980: PL60-67 1981: PL68 |
|
Losses |
None |
|
Transfers |
China, 1997: PL60-68 (PL60-68) |
|
Discarding |
none |
|
Displacement standard, t |
|
|
Displacement full, t |
86 |
|
Length, m |
26.2 |
|
Breadth, m |
5.90 |
|
Draught, m |
1.80 |
|
No of shafts |
3 |
|
Machinery |
2 MTU 12V396 TC82 diesels + 1 MAN D2566 diesel |
|
Power, h. p. |
2600 + 195 = 2600 |
|
Max speed, kts |
23 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1400(8) |
|
Armament |
1 x 1 - 12.7/90 |
| Electronic equipment | Decca 150 radar |
|
Complement |
14 |
Project history: Damen Mk I design.
Modernizations: None.
Naval service: No significant events.

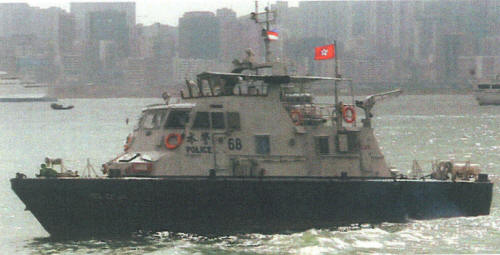

PL66 2002
© Ivan Gogin, 2019
