| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Punta Caxinas | FNH1491 | Lantana Boatyards, Lantana, USA | 11.1986 | 5.1988 | stricken 2017 |
|
Displacement standard, t |
419 |
|
Displacement full, t |
625 |
|
Length, m |
45.4 |
|
Breadth, m |
10.0 |
|
Draught, m |
2.00 |
|
No of shafts |
3 |
|
Machinery |
3 Caterpillar 3416 diesels |
|
Power, h. p. |
2025 |
|
Max speed, kts |
14.5 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 3500(12) |
|
Armament |
none |
| Military load | 100 t of vehicles or cargo |
|
Electronic equipment |
Furuno 3600 radar |
| Complement | 18 |
Project history: LCU. Can carry 100 t of vehicles or cargo on deck or 4 standard 20ft cargo containers and 175m³ of fuel.
Modernizations: None.
Naval service: No significant events.

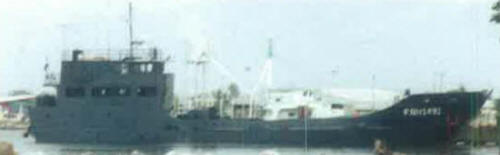

Punta Caxinas 2004
