GUATEMALA NAVY (GUATEMALA)

COASTAL FORCES

UTATLAN coastal patrol craft (1967-1972)

Names

P851 Utatlan, 1996- GC851 Utatlan

P852 Subteniente Usorio Saravia, 1996- GC852 Subteniente Usorio Saravia

Builders

Sewart Seacraft, Berwick, USA: P851, 852

Commissioned

1967: P851

1972: P852

Losses

none

Transfers

none

Discarding

in service (2019): GC851, 852

Displacement standard, t

44

Displacement full, t

54

Length, m

25.9

Breadth, m

5.80

Draught, m

2.20 max

No of shafts

3

Machinery

3 General Motors Detroit Diesel 8V92TA diesels

Power, h. p.

1950

Max speed, kts

25

Fuel, t

diesel oil 8

Endurance, nm(kts) 780(15)

Armament

2 x 1 - 7.6/90

Electronic equipment radar

Complement

17

Project history: Sewart Commercial Cruiser 85ft craft, aluminium construction.

Modernizations: 1980s, both: + 2 x 1 - 75/25 recoilless guns, 2 x 1 - 20/90 GAM-B01

1991, both: - 2 x 1 - 75/25, 1 x 1 - 20/90, radar; + Furuno radar

1996, both: central shaft diesel was removed (1300hp, 22kts)



Naval service: No significant events.

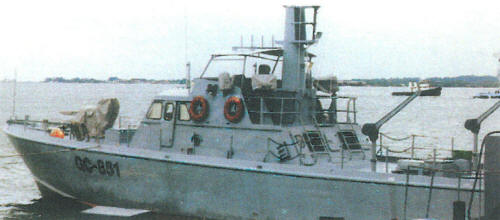

Utatlan 1999
