| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Kukulkan | P1051, 1996- GC1051 | Haletr Marine, Chalmette, USA | 4.8.1976 | in service (2019) |
|
Displacement standard, t |
90 |
|
Displacement full, t |
110 |
|
Length, m |
29.4 pp 32.0 oa |
|
Breadth, m |
6.30 |
|
Draught, m |
1.90 propellers |
|
No of shafts |
2 |
|
Machinery |
2 General Motors 16V149TI diesels |
|
Power, h. p. |
3200 |
|
Max speed, kts |
32 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 1150(20) |
|
Armament |
1 x 1 - 75/25 recoilless gun, 2 x 1 - 12.7/90, 1 x (1 - 12.7/90 + 1 - 81/12 mortar) |
| Electronic equipment | radar |
|
Complement |
20 |
Project history: US Broadsword design.
Modernizations: 1989: - 1 x 1 - 75/25, 2 x 1 - 12.7/90, 1 x (1 - 12.7/90 + 1 - 81/12 mortar); + 2 x 1 - 20/70 Mk 10, 2 x 1 - 7.6/90
1991: - 2 x 1 - 20/70, radar; + 2 x 1 - 20/90 GAM-B01, Furuno radar
1996: diesels were replaced by 4 General Motors Detroit Diesel 8V92TA (2600hp, 22kts)
Naval service: No significant events.

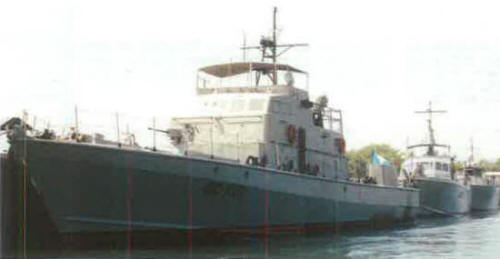

Kukulkan 2004
