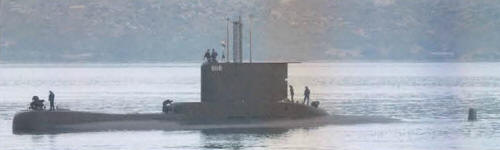

Poseidon 1990
Okeanos 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Ποσειδών [Poseidon] | S116 | Howaldtswerke, Kiel | 15.4.1976 | 21.3.1978 | 22.3.1979 | in service (2019) | |
| Αμφιτρίτη [Amphitriti] | S117 | Howaldtswerke, Kiel | 16.9.1976 | 14.6.1978 | 14.8.1979 | in service (2019) | |
| Ωκεανός [Okeanos] | S118 | Howaldtswerke, Kiel | 1.10.1976 | 16.11.1978 | 15.11.1979 | in service (2019) | |
| Πόντος [Pontos] | S119 | Howaldtswerke, Kiel | 15.1.1977 | 22.3.1979 | 29.4.1980 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement normal, t |
1185 / 1290 |
|
Length, m |
56.1 |
|
Breadth, m |
6.20 |
|
Draught, m |
5.50 |
|
No of shafts |
1 |
|
Machinery |
4 MTU 12V493 TY60 diesel-generators, 1 Siemens electric motor |
|
Power, h. p. |
2200 / 5000 |
|
Max speed, kts |
11 / 22 |
|
Fuel, t |
diesel oil 85 |
| Endurance, nm(kts) | 11300(4)(snorkel) / 400(4) |
|
Armament |
8 - 533 TT (bow, 14 SST-4) |
|
Electronic equipment |
Calypso-II radar, CSU-3-4 sonar suite (AN526, AN406A9, DUUX-2 sonars), DR-2000U ECM suite, SINBADS CCS |
|
Complement |
31 |
|
Diving depth operational, m |
250 |
Project history: Type 209/1200, modified Glavkos-class with SINBADS CCS and longer hull to give more internal volume.
Modernizations: 2010, Okeanos: lengthened (62.6m oa, 1250/1430t), PERMASYN AIP system (2 Siemens PEM fuel-cell auxiliary propulsion units, 326hp) added; - 8 - 533 TT (bow, 14 SST-4), DR-2000U ECM suite, SINBADS CCS; + 8 - 533 TT (bow, 14 (inc. Sub-Harpoon SSM (4 UGM-84C)) Mk 37 mod.2, SUT), PRS-3/15, FAS-3 sonars, Shrike ECM suite, CIRCE torpedo decoy launcher, ISUS 90-46 CCS
Naval service: No significant events.
Poseidon 2005
