Katsonis 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Κατσώνης [Katsonis] (ex-Remora) | S115 | Portsmouth N Yd, USA | 5.3.1945 | 12.7.1945 | 3.1.1946 // 29.10.1973 | stricken 3.1993 |
|
Displacement standard, t |
1660 |
|
Displacement normal, t |
1975 / 2540 |
|
Length, m |
99.5 |
|
Breadth, m |
8.23 |
|
Draught, m |
5.18 |
|
No of shafts |
2 |
|
Machinery |
4 Fairbanks-Morse 38D81/8-10 diesel-generators / 4 electric motors |
|
Power, h. p. |
4610 / 5480 |
|
Max speed, kts |
17.2 / 14.5 |
|
Fuel, t |
diesel oil 378 - 472 |
| Endurance, nm(kts) | 11000 (10) / 95 (5) |
|
Armament |
10 - 533 TT (24 torpedoes or 40 mines, 6 bow, 4 stern) |
|
Electronic equipment |
SS-2A radar, BQR-2B, BQG-4 PUFFS sonars, WLR-1 ECM suite |
|
Complement |
85 |
|
Diving depth operational, m |
135 |
Project history: Former USN Tench-class submarine, received GUPPY III conversion.
Modernizations: None.
Naval service: No significant events.

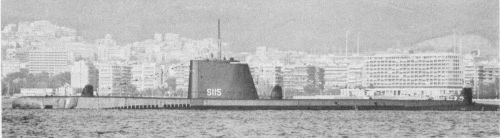

Katsonis 1979
