Irakleia 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 'Ιος [Ios] (ex-Barbe) | L167 | Howaldtwerke, Hamburg, West Germany | 26.11.1965 | 10.1.1966 // 31.1.1992 | stricken 2016 | ||
| Σίκινος [Sikinos] (ex-Dorsch) | L168 | Howaldtwerke, Hamburg, West Germany | 17.3.1966 | 24.6.1966 // 31.1.1992 | stricken 2006 | ||
| Ηρακλειά [Irakleia] (ex-Forelle) | L169 | Howaldtwerke, Hamburg, West Germany | 20.4.1966 | 7.6.1966 // 31.1.1992 | stricken 2018 | ||
| Φολέγανδρος [Folegandros] (ex-Delphin) | L170 | Howaldtwerke, Hamburg, West Germany | 25.11.1965 | 10.1.1966 // 31.1.1992 | in service (2019) | ||
| Νάξος [Naxos] (ex-Renke) | L178 | Howaldtwerke, Hamburg, West Germany | 22.9.1966 | 26.10.1966 // 16.11.1989 | in service (2019) | ||
| Πάρος [Paros] (ex-Salm) | L179 | Howaldtwerke, Hamburg, West Germany | 23.9.1966 | 26.10.1966 // 16.11.1989 | in service (2019) | ||
| Σέριφος [Serifos] (ex-Rochen) | L195 | Howaldtwerke, Hamburg, West Germany | 18.3.1966 | 26.4.1966 // 20.10.1992 | stricken 2019 |
|
Displacement standard, t |
166 |
|
Displacement full, t |
403 |
|
Length, m |
36.7 pp 40.0 oa |
|
Breadth, m |
8.80 |
|
Draught, m |
1.60 normal 2.10 max |
|
No of shafts |
2 |
|
Machinery |
2 MWM TRHS518 diesels |
|
Power, h. p. |
1200 |
|
Max speed, kts |
11 |
|
Fuel, t |
diesel oil 40 |
| Endurance, nm(kts) |
1200(11) |
|
Armament |
2 x 1 - 20/90 Rh-202 |
| Military load |
cargo: 237 t max, 142 t normal (3 tanks) |
| Electronic equipment | Kelvin Hughes 14/9 radar |
| Complement | 17 |
Project history: Former Type 520 (Butt class) landing craft of Bundesmarine. Naxos is used as personnel transport.
Modernizations: None.
Naval service: No significant events.

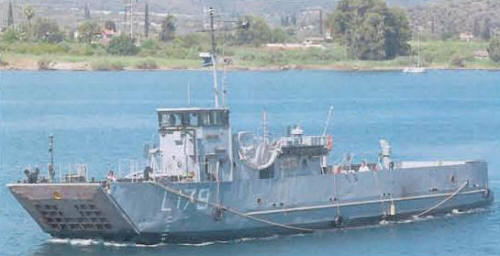

Paros 2007
