Machitis 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Μαχητής [Machitis] | P266 | Hellenic Shipyards, Skaramanga | 2001 | 6.2002 | 29.10.2003 | in service (2019) | |
| Νικηφόρος [Nikiforos] | P267 | Hellenic Shipyards, Skaramanga | 2001 | 13.12.2002 | 30.3.2004 | in service (2019) | |
| Αήττητος [Aititos] | P268 | Hellenic Shipyards, Skaramanga | 2002 | 26.2.2003 | 5.8.2004 | in service (2019) | |
| Κραταιός [Krateos] | P269 | Hellenic Shipyards, Skaramanga | 2002 | 30.10.2003 | 20.10.2005 | in service (2019) |
|
Displacement standard, t |
492 |
|
Displacement full, t |
575 |
|
Length, m |
51.5 pp 56.5 oa |
|
Breadth, m |
9.50 wl 10.0 oa |
|
Draught, m |
2.65 max |
|
No of shafts |
2 |
|
Machinery |
2 Wärtsilä-Nohab WN16V25 diesels |
|
Power, h. p. |
10000 |
|
Max speed, kts |
24 |
|
Fuel, t |
diesel oil 104 |
| Endurance, nm(kts) | 2200(16) |
|
Armament |
1 x 1 - 76/62 OTO-Melara Compact, 1 x 1 - 40/70 Bofors 350, 2 x 1 - 20/90 Rh-202, 16-36 mines (36 Mk 6 or 16 Mk 55 or 18 Mk 18) |
|
Electronic equipment |
BridgeMaster-E, Scout, Variant, LIROD Mk 2 radars, Mirador MSP-500 e/o system, DR3000SLW ECM suite, TACTICOS CCS |
| Complement | 36 + 25 troops |
Project history: Modified 'Hellenic 55' design, named 'Hellenic 56A', slightly larger with new electronics. Other sources indicate only 50 tons of fuel carried. Can carry 40 tons of fresh water. There are two RIB inspection boats aboard, handled by a 1.3t-capacity crane. The ships have a steel hull with aluminum alloy superstructure. Two pairs of Harpoon SSM launchers can be accommodated but have not been installed.
Modernizations: None.
Naval service: No significant events.

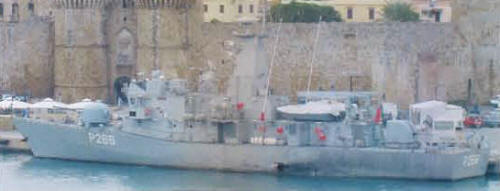

Machitis 2004
