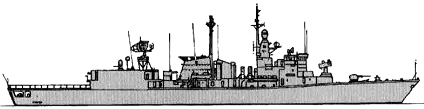

Elli 1990

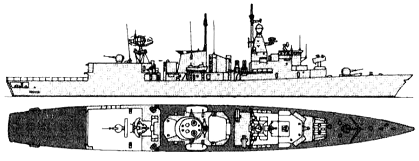

Adrias 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 'Ελλη [Elli] (ex-Pieter Florisz) | F450 | KM De Schelde, Vlissingen, Netherlands | 2.7.1977 | 15.12.1979 | 10.10.1981 | in service (2019) | |
| Λήμνος [Limnos] (ex-Witte de With) | F451 | KM De Schelde, Vlissingen, Netherlands | 13.6.1978 | 27.10.1979 | 18.9.1982 | in service (2019) | |
| Αδρίας[Adrias] (ex-Callenburgh) | F459 | KM De Schelde, Vlissingen, Netherlands | 30.6.1975 | 12.3.1977 | 26.7.1979 // 1.4.1994 | in service (2019) | |
| Αιγαίον [Aigaion] (ex-Banckert) | F460 | KM De Schelde, Vlissingen, Netherlands | 25.2.1976 | 13.7.1978 | 29.10.1980 // 14.5.1993 | in service (2019) | |
| Ναυαρίνον [Navarinon] (ex-Van Kinsbergen) | F461 | KM De Schelde, Vlissingen, Netherlands | 2.9.1975 | 16.4.1977 | 24.4.1980 // 1.2.1995 | in service (2019) | |
| Κουντουριώτης [Kountouriotis] (ex-Kortenaer) | F462 | 350 | KM De Schelde, Vlissingen, Netherlands | 8.4.1975 | 18.12.1976 | 28.10.1978 // 13.12.1997 | in service (2019) |
| Μπουμπουλίνα [Bouboulina] (ex-Pieter Florisz) | F463 | 361 | KM De Schelde, Vlissingen, Netherlands | 21.1.1981 | 8.5.1982 | 1.10.1983 // 14.12.2001 | stricken 2.2013 |
| Κανάρης [Kanaris] (ex-Jan van Brakel) | F464 | 360 | KM De Schelde, Vlissingen, Netherlands | 16.11.1979 | 16.5.1981 | 14.4.1983 // 29.11.2002 | in service (2019) |
| Θεμιστοκλής [Themistokles] (ex-Philips van Almonde) | F465 | 358 | Wilton-Fijenoord, Schiedam, Netherlands | 3.10.1977 | 11.8.1979 | 2.12.1981 // 24.10.2003 | in service (2019) |
| Νικηφόρος Φωκάς [Nikiforos Fokas] (ex-Bloys van Treslong) | F466 | 359 | Wilton-Fijenoord, Schiedam, Netherlands | 27.4.1978 | 15.11.1980 | 25.11.1982 // 19.11.2004 | in service (2019) |
|
Displacement standard, t |
3000 |
|
Displacement full, t |
3800 |
|
Length, m |
121.8 pp 130.5 oa |
|
Breadth, m |
14.6 |
|
Draught, m |
4.40 hull 6.20 propellers |
|
No of shafts |
2 |
|
Machinery |
COGOG: 2 Rolls-Royce Olympus TM-3B gas turbines / 2 Rolls-Royce Tyne RM-1C gas turbines |
|
Power, h. p. |
51600 / 9800 |
|
Max speed, kts |
30 |
|
Fuel, t |
gas turbine oil |
|
Endurance, nm(kts) |
4700(16) |
|
Armament |
F450, 451: 2 x 4 Harpoon SSM (8 RGM-84A/C), 1 x 8 Albatros SAM (24 Aspide), 2 x 1 - 76/62 OTO Melara Compact, 4 - 324 Mk 32 mod. 9 TT (16 Mk 46 mod. 5), 1 helicopter (AB-212) F459, 460: 2 x 4 Harpoon SSM (8 RGM-84A/C), 1 x 8 NATO Sea Sparrow SAM (24 RIM-7), 1 x 1 - 76/62 OTO Melara Compact, 1 x 6 - 20/76 Phalanx Mk 15, 4 - 324 Mk 32 mod. 9 TT (16 Mk 46 mod. 5), 1 helicopter (AB-212) F461, 462: 2 x 4 Harpoon SSM (8 RGM-84A/C), 1 x 8 NATO Sea Sparrow SAM (24 RIM-7), 1 x 1 - 76/62 OTO Melara Compact, 1 x 6 - 20/76 Phalanx Mk 15, 2 x 1 - 20/90 Rh-202, 2 x 1 - 12.7/90, 4 - 324 Mk 32 mod. 9 TT (16 Mk 46 mod. 5), 1 helicopter (AB-212) F463-466: 2 x 4 Harpoon SSM (8 RGM-84A/C), 1 x 8 NATO Sea Sparrow SAM (24 RIM-7), 1 x 1 - 76/62 OTO Melara Compact, 2 x 1 - 20/90 Rh-202, 2 x 1 - 12.7/90, 4 - 324 Mk 32 mod. 9 TT (16 Mk 46 mod. 5), 1 helicopter (AB-212) |
|
Electronic equipment |
F450, 451: ZW-06, LW-08, WM-25, STIR-1.8 radars, SQS-505 sonar, Sphinx ECM suite, 2x Corvus decoy RL, SEWACO II CCS F459-462: ZW-06, LW-08, WM-25, STIR-1.8, Mk 90 radars, SQS-505 sonar, Sphinx, ELT715 ECM suites, 2x Mk 36 SRBOC decoy RL, SLQ-25A Nixie torpedo decoy, SEWACO II CCS F463, 464: ZW-06, LW-08, WM-25, STIR-1.8 radars, SQS-505 sonar, Sphinx, ELT715 ECM suites, 2x Mk 36 SRBOC decoy RL, SLQ-25A Nixie torpedo decoy, SEWACO II CCS F465, 466: ZW-06, LW-08, WM-25, STIR-1.8 radars, SQS-509 (PHS-36) sonar, Sphinx, ELT715 ECM suites, 2x Mk 36 SRBOC decoy RL, SLQ-25A Nixie torpedo decoy, SEWACO II CCS |
|
Complement |
200 |
Project history: In an attempt to reduce its dependency on the USN, the Greek Navy decided to acquire frigates of the Netherlands Kortenaer class, the first two units being ordered in 1980 and 1981 respectively. In order to ensure rapid delivery, the sixth and seventh units being built for the Netherlands Navy were purchased and replacements ordered for the Dutch. It was originally planned for a third unit to be built by the Hellenic Shipyard at Skaramanga, with Dutch assistance, but this was later abandoned due to financial problems. Instead further eight ships were acquired from the Netherlands 1993-2004. These ships have been fitted with lengthened hangars to accommodate the larger AB-212 ASW helicopters operated by the Greeks. Normally only one helicopter is carried. Phalanxes were installed
Modernizations: 1990, Elli, Limnos: - 2x Corvus decoy RL; + 2 x 6 - 20/76 Phalanx Mk 15, 2x Mk 90 radars, 2x Mk 36 SRBOC decoy RL
late 1990s, all commissioned: + 2 x 1 - 20/90 Rh-202, 2 x 1 - 12.7/90
2003, Kanaris; 2004, Nikiforos Fokas: - AB-212 helicopter; + S-70B-6 helicopter
2006, Kountouriotis; 2007, Adrias; 2008, Navarinon; 2009, Elli, Limnos; 2010, Aigaion: - AB-212 helicopter, ZW-06 radar, Sphinx ECM suite, SEWACO II CCS; + S-70B-6 helicopter, Scout Mk 2, BridgeMaster radars, Mirador e/o system, CS3701 ECM suite, 2x ALEX decoy RL, TACTICOS CCS
2010-2012, Kanaris, Themistokles, Nikiforos Fokas: + 1 x 6 - 20/76 Phalanx Mk 15, Mk 90 radar
Naval service: Kanaris ran aground near Atalanti in Saronic Gulf 2.11.2017 and returned to service only in May 2018.

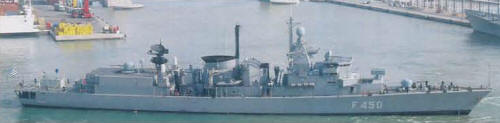

Elli 2007

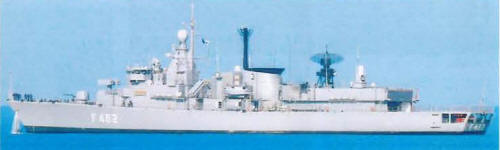

Kountouriotis 2008

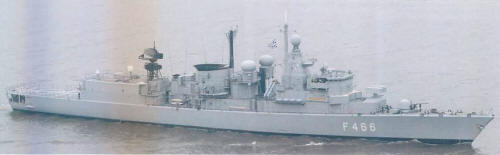

Nikiforos Fokas 2007
