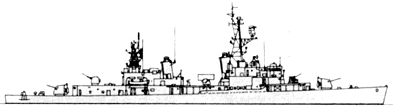

Themistoklis 1975

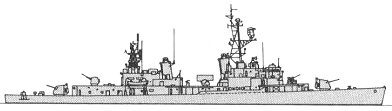

Sachtouris 1980

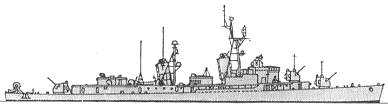

Kanaris 1980

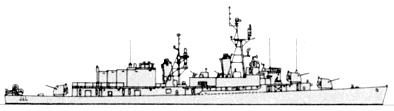

Themistoklis 1990

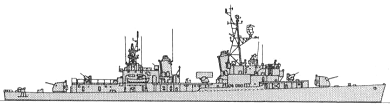

Kanaris 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Θεμιστοκλῆς [Themistoklis] (ex-Frank Knox) | D210 | Bath Iron Wks, USA | 8.5.1944 | 17.9.1944 | 11.12.1944 // 30.1.1971 | deleted 8.1992 | |
| Κανάρης [Kanaris] (ex-Stickell) | D212 | Consolidated, Orange, USA | 5.1.1945 | 16.6.1945 | 26.9.1945 // 1.7.1972 | deleted 1994 | |
| Κουντουριώτης [Kountouriotis] (ex-Rupertus) | D213 | Bethlehem, Quincy, USA | 2.5.1945 | 21.9.1945 | 8.3.1946 // 10.7.1973 | deleted 1995 | |
| Σαχτούρης [Sachtouris] (ex-Arnold J. Isbell) | D214 | Bethlehem, Staten I, Port Richmond, USA | 14.3.1945 | 6.8.1945 | 5.1.1946 // 4.12.1973 | deleted 1993 | |
| Τομπάζης [Tompazis] (ex-Gurke) | D215 | Todd-Pacific, Seattle, USA | 1.7.1944 | 15.4.1945 | 5.12.1945 // 17.3.1977 | deleted 1.1997 | |
| Αποστόλης [Apostolis] (ex-Charles P. Cecil) | D216 | Bath Iron Wks, USA | 2.12.1944 | 22.2.1945 | 29.6.1945 // 2.8.1980 | deleted 1993 | |
| Κριεζής [Kriezis] (ex-Myles C. Fox) | D217 | Bath Iron Wks, USA | 14.8.1944 | 13.1.1945 | 20.3.1945 // 8.7.1981 | deleted 1993 |
| Data variant | D210 |
|
Displacement standard, t |
2425 |
|
Displacement full, t |
3500 |
|
Length, m |
116.6 wl 119.0 oa |
|
Breadth, m |
12.5 |
|
Draught, m |
4.45 hull 6.40 over sonar |
|
No of shafts |
2 |
|
Machinery |
2 sets General Electric geared steam turbines, 4 Babcock & Wilcox boilers |
|
Power, h. p. |
60000 |
|
Max speed, kts |
30 |
|
Fuel, t |
oil 650 |
| Endurance, nm(kts) | 4800(15) |
|
Armament |
3 x 2 - 127/38 Mk 38, 6 x 1 - 20/70 Mk 10, 2 x 3 - 324 Mk 32 TT, 2 x 24 - 178 Hedgehog Mk 11 ASWRL |
|
Electronic equipment |
Decca nav., SPS-10, SPS-29, Mk 25 radars, SQS-23, SQA-10 VDS sonars, WLR-1 ECM suite |
|
Complement |
269 |
| Data variant | D212-217 |
|
Displacement standard, t |
2425 |
|
Displacement full, t |
3500 |
|
Length, m |
116.6 wl 119.0 oa |
|
Breadth, m |
12.5 |
|
Draught, m |
4.45 hull 6.40 over sonar |
|
No of shafts |
2 |
|
Machinery |
2 sets General Electric geared steam turbines, 4 Babcock & Wilcox boilers |
|
Power, h. p. |
60000 |
|
Max speed, kts |
30 |
|
Fuel, t |
oil 650 |
|
Endurance, nm(kts) |
4800(15) |
|
Armament |
1 х 8 ASROC ASuR (14 RUR-5), 2 x 2 - 127/38 Mk 38, 2 x 3 - 324 Mk 32 TT, 1 DCR |
|
Electronic equipment |
D212: Decca nav., SPS-10, SPS-29, Mk 25 radars, SQS-23D sonar, WLR-1, ULQ-6 decoy RL D213, 214: Decca nav., SPS-10, SPS-40, Mk 25 radars, SQS-23D sonar, WLR-1, ULQ-6 decoy RL D215, 216: LN-66, SPS-10, SPS-29, Mk 25 radars, SQS-23D sonar, WLR-1, ULQ-6 decoy RL |
|
Complement |
274 |
Project history: Former USN Gearing class destroyers, received a FRAM II (first) and FRAM I (others) modernizaton.
Modernizations: 1978, Themistoklis: + hangar and 1 helicopter (Alouette III)
late 1970s, Kanaris, Kountouriotis, Sachtouris, Tompazis, 1986, Apostolis, Kriezis:: + 1 x 1 - 76/62 OTO-Melara Compact, 1 x 1 - 40/70 Bofors 350, RTN-20X radar
1980, Themistoklis: - 6 x 1 - 20/70; + 2 x 2 - 30/75 Emerlec EX-30
1987-1988, Themistoklis, Apostolis, Kriezis: + 2 x 2 Redeye SAM (some FIM-43)
1987-1988, Kanaris, Kountouriotis, Sachtouris, Toumpazis: + 2 x 2 Harpoon SSM (4 RGM-84A), 2 x 2 Redeye SAM (some FIM-43)
Naval service: No significant events.

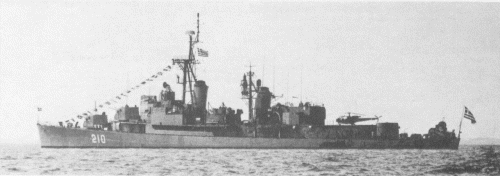

Themistoklis 1980

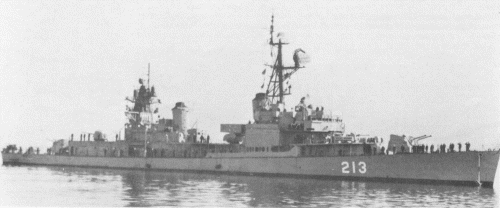

Kountouriotis 1979
