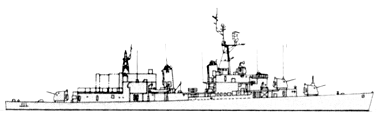

Miaoulis 1980

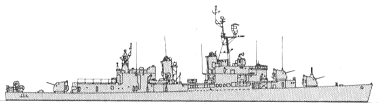

Miaoulis 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Μιαούλης [Miaoulis] (ex-Ingraham) | D211 | Federal, Kearny, USA | 4.4.1943 | 16.1.1944 | 10.3.1944 // 16.7.1971 | stricken 1992 |
|
Displacement standard, t |
2450 |
|
Displacement full, t |
3320 |
|
Length, m |
112.5 wl 114.8 oa |
|
Breadth, m |
12.5 |
|
Draught, m |
4.39 hull 5.79 over sonar |
|
No of shafts |
2 |
|
Machinery |
2 sets General Electric geared steam turbines, 4 Babcock & Wilcox boilers |
|
Power, h. p. |
60000 |
|
Max speed, kts |
30 |
|
Fuel, t |
oil 495 |
| Endurance, nm(kts) | 4800(15) |
|
Armament |
3 x 2 - 127/38 Mk 38, 2 x 1 - 40/60 Mk 3, 6 x 1 - 20/70 Mk 10, 2 x 3 - 324 TT, 2 x 24 - 178 Hedgehog Mk 11 ASWRL, 1 helicopter (Alouette III) |
|
Electronic equipment |
Decca nav., SPS-10, SPS-40, Mk 25 radars, SQS-29, SQA-10 VDS sonars, WLR-1 ECM suite |
|
Complement |
274 |
Project history: Former USN Allen M. Sumner class destroyer, received a FRAM II modernizaton, transferred under MDAP.
Modernizations: 1987: - 2 x 1 - 40/60, 6 x 1 - 20/70, Alouette III helicopter; + 2 x 1 - 20/90 Rh-202, 2 x 1 - 12.7/90, AB-212 helicopter, 2x Loral-Hycor decoy RL
Naval service: No significant events.

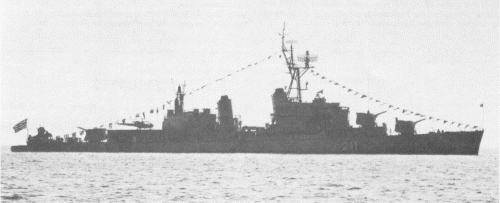

Miaoulis 1979
