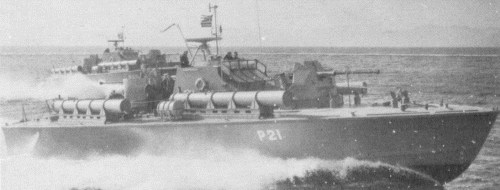

Andromeda 1970
|
Names |
P21, 1982- P196 Ανδρομέδα [Andromeda] P22 Ηνίοχος [Iniohos] P23, 1982- P197 Κάστωρ [Kastor] P24, 1982- P198 Κύκνος [Kyknos] P25, 1982- P199 Πήγασος [Pigasos] P26, 1982- P228 Τοξότης [Toxotis] |
|
Builders |
Båtservice, Mandal, Norway: P21-26 |
|
Completed |
11/1966: P21 2-5/1967: P22-26 |
|
Losses |
None |
|
Transfers |
None |
|
Discarding |
1972: P22 1983: P197 in service (2019): P196, 198, 199, 228 |
|
Displacement standard, t |
69 |
|
Displacement full, t |
76 |
|
Length, m |
24.5 oa 22.9 pp |
|
Breadth, m |
7.50 |
|
Draught, m |
1.95 |
|
No of shafts |
2 |
|
Machinery |
2 Napier Deltic T1827K diesels |
|
Power, h. p. |
6280 |
|
Max speed, kts |
43 |
|
Fuel, t |
diesel oil 10 |
|
Endurance, nm(kts) |
676(17) |
|
Armament |
2 x 1 - 40/70 Bofors 350, 4 - 533 TT |
|
Electronic equipment |
Decca 1226 radar |
|
Complement |
20 |
Project history: An order for six MTBs was placed with Mandal, Norway in 1965. These were identical with the Norwegian Tjeid (improved Nasty) class except that they have 2-40mm in place of the Norwegian boats 1-40mm and 1-20mm. These were the first new warships to be built for Greece since the 1930s. Iniohos was discarded in 1972, and the remainder, renumbered P 196-P 200 respectively, were deleted in 1983.
Modernizations: 1985, all survived: diesels were replaced by 2 MTU 12V331 TC83 (3060hp, 40kts); - 1 x 1 - 40/70; + 1 x 1 - 20/70 Mk 10
1989, Andromeda, Kyknos, Pigasos and Toxotis: - 4 - 533 TT
Naval service: All were deleted in 1983 but Andromeda, Kyknos, Pigasos and Toxotis were re-engined and refurbished to re-enter service in 1989.
Andromeda 1974
© Ivan Gogin, 2015-19
