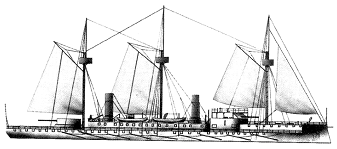

Idra 1892

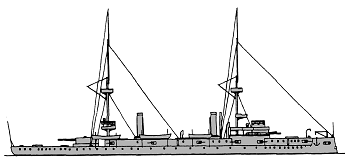

Spetsai 1914
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Υδρα [Idra] | Graville, Le Havre, France | 1887 | 15.5.1889 | 1892 | deleted 1919, gunnery school 1922, BU 1929 | ||
| Σπέτσαι [Spetsai] | Graville, Le Havre, France | 1887 | 26.10.1889 | 1892 | deleted 1919, naval communication school 1922, BU 1929 | ||
| Ψαρά [Psara] | A C de la Loire et Penhoët, St-Nazaire, France | 1887 | 20.2.1890 | 1891 | deleted 1919, boys school, BU 1932 |
|
Displacement normal, t |
4808 |
|
Displacement full, t |
4885 |
|
Length, m |
102.0 pp |
|
Breadth, m |
15.8 |
|
Draught, m |
5.49 mean |
|
No of shafts |
2 |
|
Machinery |
2 VTE, 4 cylindrical boilers |
|
Power, h. p. |
6700 |
|
Max speed, kts |
17 |
|
Fuel, t |
coal 690 |
| Endurance, nm(kts) | |
|
Armour, mm |
Creusot steel and compound; belt: 305 - 114, deck: 57, casemate: 350 - 300, barbette: 305 |
|
Armament |
2 x 1 - 274/34 M1884, 1 x 1 - 274/28 M1881, 5 x 1 - 150/34 M1887, 4 x 1 - 90/22 Canet M1881, 4 x 1 - 47/40 Hotchkiss, 4 x 1 - 37/20 Hotchkiss, 6 x 5 - 37/17 Hotchkiss, 3 - 356 TT (1 bow, 2 beam) |
|
Complement |
440 |
Project history: Original ships with unusual placing of main guns (two in bow casemate and one on aft barbette) and high speed.
Ship protection: Belt had 305mm thickness tapered to 76mm at lower edge. Ship ends were protected by 114mm belt. Main casemate had 350mm sides and 300mm roof, aft barbette had 305mm sides.
Modernizations: 1897 - 1900, all: - 5 x 1 - 150/34, 4 x 1 - 90/22, 4 x 1 - 37/20, 1 - 356 TT (bow); + 1 x 1 - 100/48 Canet, 8 x 1 - 65/50 Canet, 4 x 5 - 37/17, 1 - 381 TT (bow)
1908 - 1910, all: were armed with 5 x 1 - 150/45 Schneider
1914 - 1915, all: - 2 x 1 - 150/45; + 6 x 1 - 37/20 Hotchkiss
Naval service: All were stricken at first in 1919, but continued to serve as training auxiliaries and hulks. All were broken up in 1929.

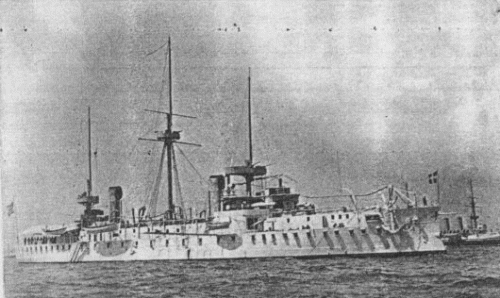

Psara 1895
