Afadzato 1970
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Yogaga (ex-Malham) | M11 | Fairlie Yacht, UK | 29.8.1958 | 12.1958 // 10.1959 | discarded 1977 | ||
| Afadzato (ex-Ottringham) | M12 | Ailsa, Troon, UK | 22.1.1958 | 12.1958 // 10.1959 | discarded 1977 |
|
Displacement standard, t |
120 |
|
Displacement full, t |
159 |
|
Length, m |
M11: 30.5 pp 32.8 oa M12: 30.5 pp 32.5 oa |
|
Breadth, m |
M11: 6.70 M12: 6.60 |
|
Draught, m |
1.67 - 1.75 |
|
No of shafts |
2 |
|
Machinery |
2 Davey Paxman diesels |
|
Power, h. p. |
1100 |
|
Max speed, kts |
14 |
|
Fuel, t |
diesel oil 15 |
| Endurance, nm(kts) | 2350(9) |
|
Armament |
1 x 1 - 20/70 Mk 7, LL mechanical/magnetic/acoustic minesweeping gear |
|
Electronic equipment |
type 978 radar |
|
Complement |
15 |
Project history: Former British 'Ham' class inshore minesweepers, fitted with funnels before transfer.
Modernizations: None.
Naval service: No significant events.

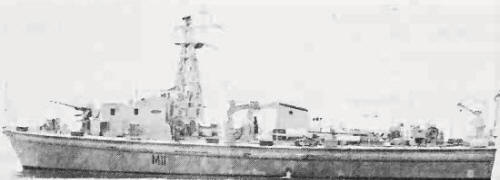

Yogaga 1966
