GHANA NAVY (GHANA)

ESCORTS

KROMANTSE corvettes (1964-1965)

Kromantse 1970

Name No Yard No Builder Laid down Launched Comm Fate
Kromantse F17   Vosper, Portsmouth, UK 10.12.1962 5.9.1963 27.7.1964 discarded 1989
Keta F18   Vickers, Tyne, UK 25.10.1963 18.1.1965 18.5.1965 discarded 1989



Displacement standard, t

440

Displacement full, t

500

Length, m

54.0

Breadth, m

8.70

Draught, m

4.00

No of shafts

2

Machinery

2 Bristol Siddeley Maybach diesels

Power, h. p.

7100

Max speed, kts

20

Fuel, t

diesel oil 60
Endurance, nm(kts) 2900(14)

Armament

1 x 1 - 102/40 Mk 23, 1 x 1 - 40/60 Mk 9, 1 x 3 - 305 Squid Mk 4 ASWRL, 2 x 1 - 51 FRLs

Electronic equipment

ASW-1, type 978 radars, type 164 sonar

Complement

235

Project history: Vosper Mk 1 corvettes, designed in conjunction with Vickers, and the first in the series of Vosper corvette and frigate designs. Novel, compact and relatively cheap ASW patrol vessels. Two more units were projected, but never begun.

Modernizations: None.



Naval service: No significant events.

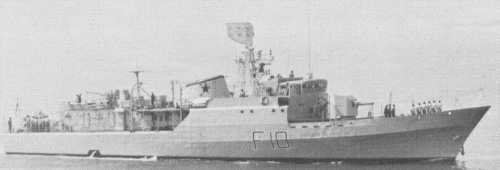

Keta 1975
