Dzata 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Yaa Asantewaa (ex-Bussard, ex-S64) | P38 | Lürssen, Vegesack, West Germany | 4.7.1973 | 14.4.1975 | 14.8.1976 // 2.7.2012 | in service (2019) | |
| Naa Gbewaa (ex-Albatros, ex-S61) | P39 | Lürssen, Vegesack, West Germany | 4.5.1972 | 22.10.1973 | 1.11.1976 // 2.7.2012 | in service (2019) |
|
Displacement standard, t |
300 |
|
Displacement full, t |
393 |
|
Length, m |
54.4 pp 57.6 oa |
|
Breadth, m |
7.76 |
|
Draught, m |
2.56 hull 2.82 propellers |
|
No of shafts |
4 |
|
Machinery |
4 MTU 16V956 TB91 diesels |
|
Power, h. p. |
17950 |
|
Max speed, kts |
38 |
|
Fuel, t |
diesel oil 116 |
|
Endurance, nm(kts) |
2600(16) |
|
Armament |
1 x 1 - 20/90 GAM-B01, 2 x 1 - 12.7/90 |
|
Electronic equipment |
Furuno radar |
|
Complement |
40 |
Project history: Discarded from German service in 2005, both ships were refitted before transfer.
Modernizations: None.
Naval service: No significant events.

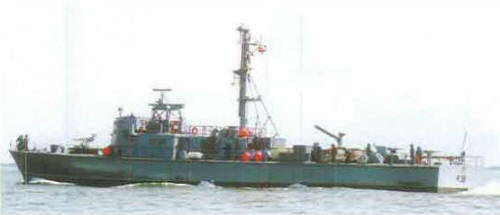

Yaa Asantewaa 2012
© Ivan Gogin, 2019
