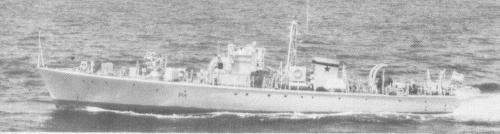

Elmina 1965
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Elmina | P13 | Yarrow, Scotstoun, UK | 10.1962 | discarded 1985 | |||
| Komenda | P14 | Yarrow, Scotstoun, UK | 12.1962 | discarded 1986 |
|
Displacement standard, t |
120 |
|
Displacement full, t |
142 |
|
Length, m |
33.5 pp 35.8 oa |
|
Breadth, m |
6.10 |
|
Draught, m |
2.10 |
|
No of shafts |
3 |
|
Machinery |
2 Maybach MD16V53-87B90 diesels + 1 Foden diesel |
|
Power, h. p. |
3000 + 100 |
|
Max speed, kts |
20 / 8 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
1000(13) |
|
Armament |
1 x 1 - 40/60 Mk 7, 2 DCT, 2 DCR |
|
Electronic equipment |
type 978 radar, type 144 sonar |
|
Complement |
32 |
Project history: Development of British 'Ford' design, built for Ghana.
Modernizations: 1967, both: Foden diesel and central shaft were removed.
Naval service: No significant events.
Komenda 1969
