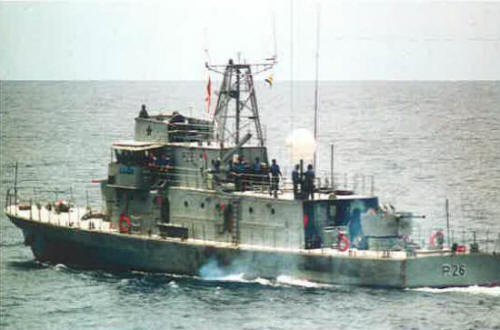

Dzata 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Dzata | P26 | Lürssen, Vegesack, West Germany | 16.1.1978 | 19.9.1979 | 4.12.1979 | in service (2019) | |
| Sebo | P27 | Lürssen, Vegesack, West Germany | 1.1978 | 19.9.1979 | 2.5.1980 | in service (2019) |
|
Displacement standard, t |
212 |
|
Displacement full, t |
252 |
|
Length, m |
42.3 pp 44.9 oa |
|
Breadth, m |
7.00 |
|
Draught, m |
2.50 propellers |
|
No of shafts |
2 |
|
Machinery |
2 MTU 16V538 TB91 diesels |
|
Power, h. p. |
6000 |
|
Max speed, kts |
30 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
2000(15) |
|
Armament |
2 x 1 - 40/70 Breda-Bofors 564 |
|
Electronic equipment |
Decca 1226 radar |
|
Complement |
35 |
Project history: Lürssen TNC45 type.
Modernizations: 1989, Dzata; 1992, Sebo: - Decca 1226 radar; + Furuno FAR-2117, Furuno FR-1500 radars
Naval service: No significant events.
Dzata 2002
© Ivan Gogin, 2019
