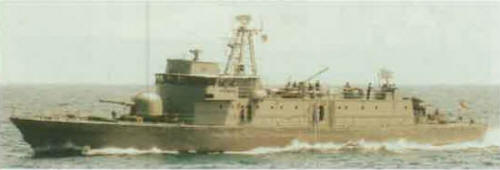

Achimota 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Achimota | P28 | Lürssen, Vegesack, West Germany | 1978 | 14.3.1979 | 27.3.1981 | in service (2019) | |
| Yogaga | P29 | Lürssen, Vegesack, West Germany | 1978 | 14.3.1979 | 27.3.1981 | in service (2019) |
|
Displacement standard, t |
380 |
|
Displacement full, t |
410 |
|
Length, m |
58.1 |
|
Breadth, m |
7.62 |
|
Draught, m |
2.83 |
|
No of shafts |
3 |
|
Machinery |
3 MTU 16V538 TB91 diesels |
|
Power, h. p. |
10800 |
|
Max speed, kts |
30 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
|
|
Armament |
1 x 1 - 76/62 OTO-Melara Compact, 1 x 1 - 40/70 Breda-Bofors 564 |
|
Electronic equipment |
Decca 1226, Triton radars, LIOD e/o system |
|
Complement |
40 |
Project history: Lürssen PB57 type.
Modernizations: None.
Naval service: No significant events.
Achimota 2007
