Nordperd 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp. | Fate |
| Nordperd | E-35/E-171 | 109.01 | Peenewerft, Wolgast, East Germany | 26.1.1978 | 30.8.1978 | 3.10.1979 | stricken 10.1990, to Indonesia (Teluk Cirebon) |
| Südperd | E-36/E-172 | 109.02 | Peenewerft, Wolgast, East Germany | 16.4.1978 | 30.10.1978 | 26.2.1980 | stricken 10.1990, to Indonesia (Teluk Sabang) |
|
Displacement standard, t |
1744 |
|
Displacement full, t |
1950 |
|
Length, m |
90.7 |
|
Breadth, m |
11.1 |
|
Draught, m |
2.80 mean 3.40 max |
|
No of shafts |
2 |
|
Machinery |
2 61B diesels |
|
Power, h. p. |
12000 |
|
Max speed, kts |
18 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
2450(14) |
|
Armament |
1 x 4 Fasta-4M SAM (16 9M32M), 2 x 2 - 57/50 AK-725, 2 x 2 - 25/82 2M-3M |
|
Military load |
650 t cargo or mines |
|
Electronic equipment |
TSR-333, MR-302 Rubka, MR-105 Bars radars, 2x PK-16 decoy RL |
|
Complement |
35 |
Project history: Project 109, armed support ships on base of project 108 landing ships with the combat outfit reduced but with a 8t crane amidships.
Modernizations: None.
Naval service: No significant events.

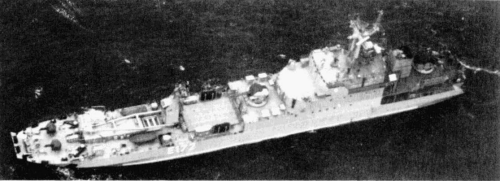

Nordperd 1989
Many thanks to Wolfgang Stöhr for additional information on this page.
